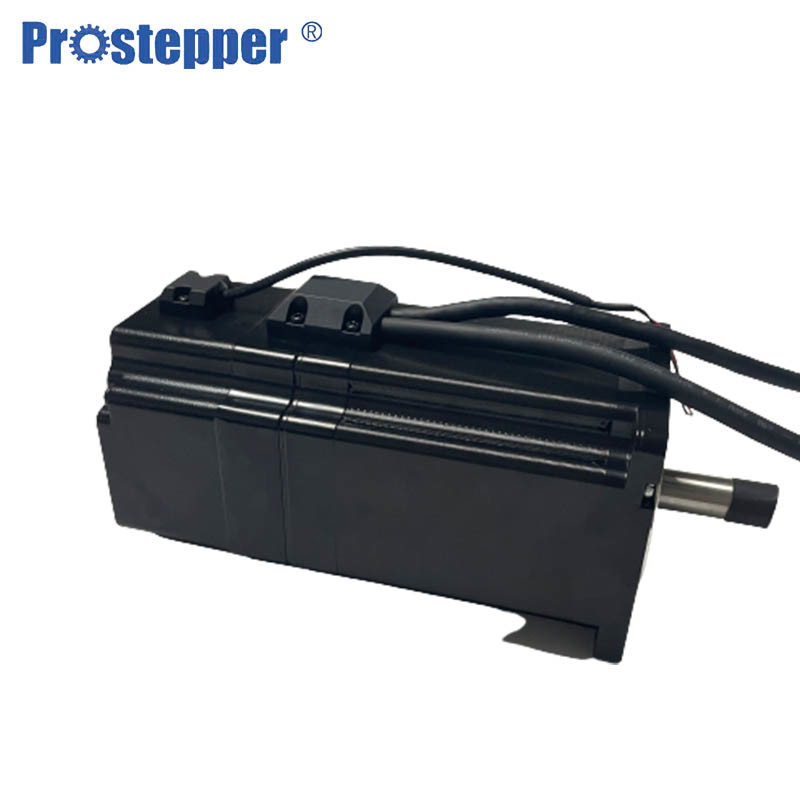

Nema 34 High Torque Stepper Motor

Basic Information
Place of Origin: CHINA
Brand Name: Prostepper
Certification: CE.ISO.ROHS.
Model Number: PEM86H2160E1KS
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: 38.5*24*23
Delivery Time: 7-25 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 250000pcs/ per month
Brand: Prostepper Certification: CE/ISO/RoHS
Model: PEM86H2160E1KS Type: 1.8degree Encoder Stepping Motor
Step Angle: 1.8degree Output: Different
HS Code: 8501109990 Mode Length: 160mm
High Light:

Nema 34 High Torque Stepper Motor

,

86mm Nema 34 High Torque Stepper Motor

,

86mm nema 34 stepper motor

NEMA34 1.8 stepper motor 86mm Encoder Stepping Motor Standard Type




Product description

Specifications



Holding Torque 12N.m
Related Current 6A/Phase
Resistance 0.72Ω/Phase
Inductance 7.3MH/Phase
Inertia 1700g.cm²
Index

×

Output Differental
Encoder Resolution 1000CPR




Encoder Specifications



Model E1K E2K5z
Resolution 1000cpr/4000ppr 2500cpr/10000ppr
Type Incremental encoder Incremental encoder
Output Mode Differental Differental
Output Signal A+A-;B+B- A+A-;B+B-;Z+Z-
Supple Voltage 5VDC±5% 5VDC±5%



Nema 34 High Torque Stepper Motor 0Nema 34 High Torque Stepper Motor 1

Features:
