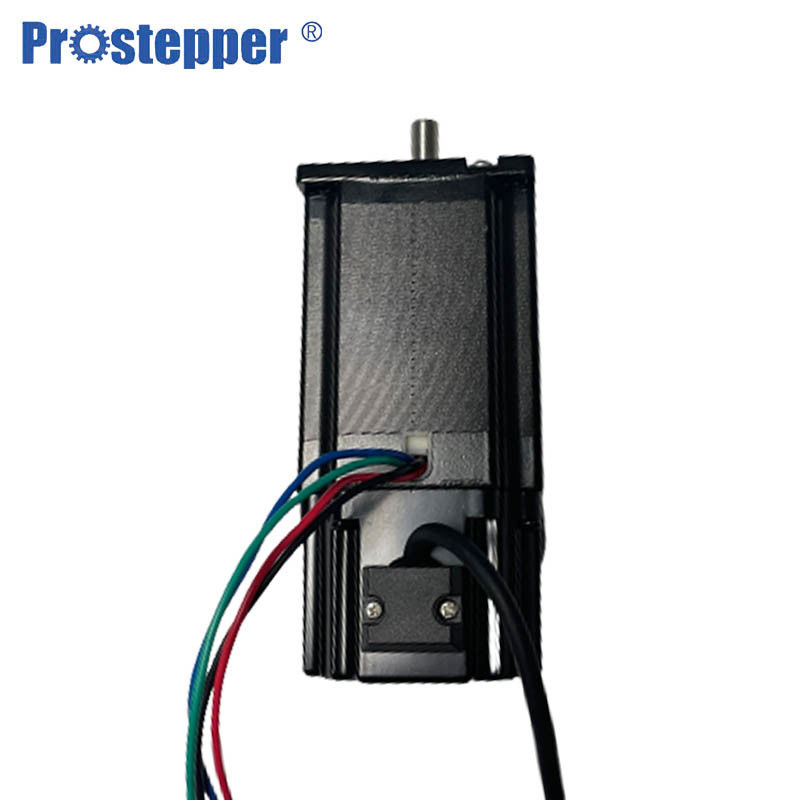

Home Appliances 1.3N.M 76mm Holding Torque Stepper Motor

Basic Information
Place of Origin: JIANGSU,CHINA
Brand Name: Prostepper
Certification: CE/ISO/RoHS.
Model Number: PEM57H276E2K5zM
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: 38.5*24*23
Delivery Time: 7-25 work days
Payment Terms: T/T, Western Union, L/C,
Supply Ability: 250000pcs /per month
Product Model: PEM57H276E2K5zM Brand: Prostepper
Brake Torque: 1.3N.m Step Angle(degrees): 1.8 Degree
Current: 5A Motor Length: 76mm
Weight: 1.6kg MOQ: 10PCS
High Light:

76mm Holding Torque Stepper Motor

,

1.3N.M Holding Torque Stepper Motor

,

76mm nema 23 stepper motor

1.8 Degree Stepping Motor For Home Appliances NEMA23 Brake Stepper Motor With Encoder






Product description of 2 phase hybrid brake stepper motor



Specifications of brake stepper motor

Holding Torque 2N.m
Related Current 5A/Phase
Resistance 0.37Ω/Phase
Inductance 1.8MH/Phase
Inertia 480g.cm²
Index

×

Output Differental
Black Torque 1.6N.m









Home Appliances 1.3N.M 76mm Holding Torque Stepper Motor 0














Home Appliances 1.3N.M 76mm Holding Torque Stepper Motor 1

Encoder Specifications                                                Brake Specifications

Model E1K E2k5z Model PEM57/PEM60
Resolution 1000cpr/4000ppr 2500cpr/10000ppr Brake Type Holding Brake
Type Incremental encoder Incremental encoder Voltage 24VDC±5%
Output Mode Differental Differental Power 5W
Output Signal A+A-;B+B- A+A-;B+B-;Z+Z- Torque 1.3N.m
Supple Voltage 5VDC±5% 5VDC±5% Release Time 50ms



Why choose stepper motor


Home Appliances 1.3N.M 76mm Holding Torque Stepper Motor 2

Quality control process:



1. Incoming inspection: The inspection shall be conducted according to the Requirements of the Incoming Inspection Specification or the product drawing



2. Monitoring and measurement of production process (self-inspection - inspection - batch production)



3. Final inspection and test



4. All inspectors must be trained and then put on duty



5. Nonconforming products shall be executed in accordance with Nonconforming Product Control Procedures



6. Raw material inspection



7. Inspecting according to the standard of testing raw material or the drawing



8. Monitoring and measurement in production process



9. Self checking-tested by QC-Batches production



10. Final checking and make experiment



11. All products should be through testing by the professional equipment
