| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Prostepper |
| Certification: | CE/ISO/ROHS |
| Model Number: | PST28H232-4P05 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | inner package is EPE foam, outer package is caton with film, the carton size is 32.5*30.5*14.5mm or 39.5*24.5*18mm or as the customer's requirements. |
| Delivery Time: | within 10 work days after receiving your payment |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 250000PCS |
| Product Name: | Connector Type Stepping Motor | Frame Size: | 28mm |
|---|---|---|---|
| Color: | Sliver | Feature: | High Presicision Control |
| Type: | Connector Type | Lead: | 4 |
| Length: | 32mm | Weight: | 0.1KG |
| High Light: | 0.5A Electric Stepper Motor,32mm Electric Stepper Motor,32mm high performance stepper motor |
||

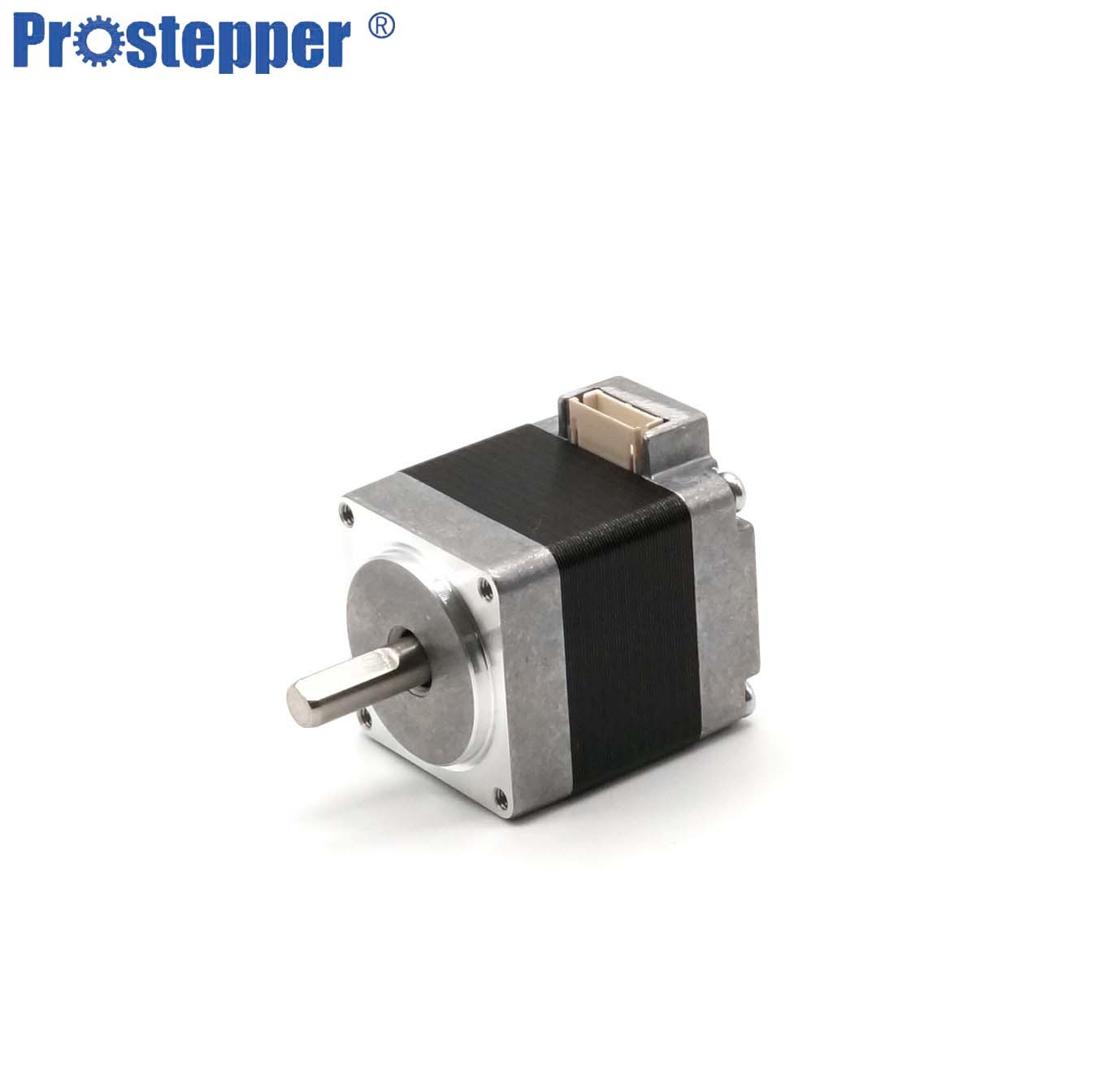

Nema 11 1.8 Degree high performance connector type electric stepping motor for CNC machine
Description
We are a lead motor manufacturer in China. Our products range over HB stepper motor, BLDC motor, servo motors and driver systems.
1) Our products have good quality and pretty competitive price.
2) We can do custom-made changes as customers' requirements.
General specifications
| Specification | Motor Characteristics | |
| Insulation Class | Class B130°C | |
| Step Angle Accuracy | ±0.09° | |
| Withstand Voltage | AC500V (one minute) | |
| Insulation Resistance | 100MQ MIN. 500VDC | |
| Temperature Rise | 80*C MAX | |
| Radial Play | 0.025mm Max. (Load450g) | |
| Axial Play | 0.075mm Max. (Load950g) | |
| Temperature | -10~+50°C (Non Condensing) | |
| Operating Environment | Humidity | 85%RH MAX. (Non Condensing) |
| Medium | No corrosive gas or dust. Not directly in contact with water, oil, etc. | |
| Storage Environment | Temperature | 0~+50°C (Non Condensing |
| Humidity | 85%RH MAX. (Non Condensing) | |
| Life | 5000 Hours MIN. | |
Radial Load&Axial Load
| Motor Size | Shaft Diameter (mm) | Radial Load (N) | Axial Load (N) | ||||||
| Distance from Mounting Surface (mm) | |||||||||
| 5 | 10 | 15 | 20 | 25 | 30 | 35 | |||
| NEMA8 | 4 | 15 | 12 | — | 3 | ||||
| NEMA 11 | 5 | 50 | 35 | 25 | — | 5 | |||
| NEMA 14 | 5 | 50 | 35 | 25 | 20 | — | — | — | 10 |
| NEMA 17 | 5 | 50 | 35 | 25 | 20 | — | — | 15 | |
| NEMA 23 | 8 | 270 | 180 | 130 | 100 | 90 | — | 20 | |
| NEMA 24 | 8 | 200 | 135 | 100 | 82 | 58 | — | — | 30 |
| NEMA 34 | 14 | 620 | 550 | 480 | 390 | 340 | 290 | 260 | 60 |
Specification:
| Mode No | PST28H232-4P05 |
PST28H232-4P10
|
PST28H245-4P10
|
PST28H245-4P15 |
| Holding Torque | 0.08 N.m | 0.08 N.m | 0.12 N.m | 0.12 N.m |
| Related Current | 0.5A/Phase | 1A/Phase | 1A/Phase | 1.5A/Phase |
| Resistance | 20 Ω /Phase | 5.7 Ω /Phase | 8.5 Ω /Phase | 3Ω /Phase |
| Inductance | 14MH/Phase | 3.5MH/Phase | 6.5MH/Phase | 3MH/Phase |
| Inertia | 9 g.cm2 | 9 g.cm2 | 12 g.cm2 | 12 g.cm2 |
| Weight | 0.1kgs | 0.1kgs | 0.15kgs | 0.15kgs |
| Length | 32mm | 32mm | 45mm | 45mm |
|
Connection
|
P | P | P | P |
| Mode No | PST28H251-4P10 | PST28H251-4P15 |
| Holding Torque | 0.14 N.m | 0.14 N.m |
| Related Current | 1A/Phase | 1.5A/Phase |
| Resistance | 9.9Ω /Phase | 3.5Ω /Phase |
| Inductance | 6.7MH/Phase | 3.1MH/Phase |
| Inertia | 18 g.cm2 | 18 g.cm2 |
| Weight | 0.2kgs | 0.2kgs |
| Length | 51mm | 51mm |
| Connection | P | P |
The aboved speed/torque curve is based on prostepper's test conditions. When the driving conditions change, the dynamic torque changes too.
The related current indicated in the specification is an effective value, please adjust the driver's current below the ralted current.
PST28H232-4P05
Please note the outline shows a dual-shaft motor.
The single shaft motor does not have the blue part shaft and the * mark hole demensions.
Features of prosteppers’ stepping motor
Accurate Position Control
The angular displacement of the stepping motor can be precisely controlled by the number of electric pulses. Angle accuracy can be controlled within ±0.09゜without any feedback devices.
Forward/Reverse Rotation, Pause and Hold
The forward/reverse rotation of the stepper motor can be controlled by the input sequence of the controlled electric pulses.
In case of a stepper motor lock (the motor winding is energized, there is no external electric pulse command), the stepper motor can still maintain a certain torgue output.
Longer life
Stepper motor is a mechanical structure, which does not need to be commutated by brush and Hall sensor, thus reducing the probability of failure and increasing the motor life. Stepping motor life usually determined by the life of the bearing.
