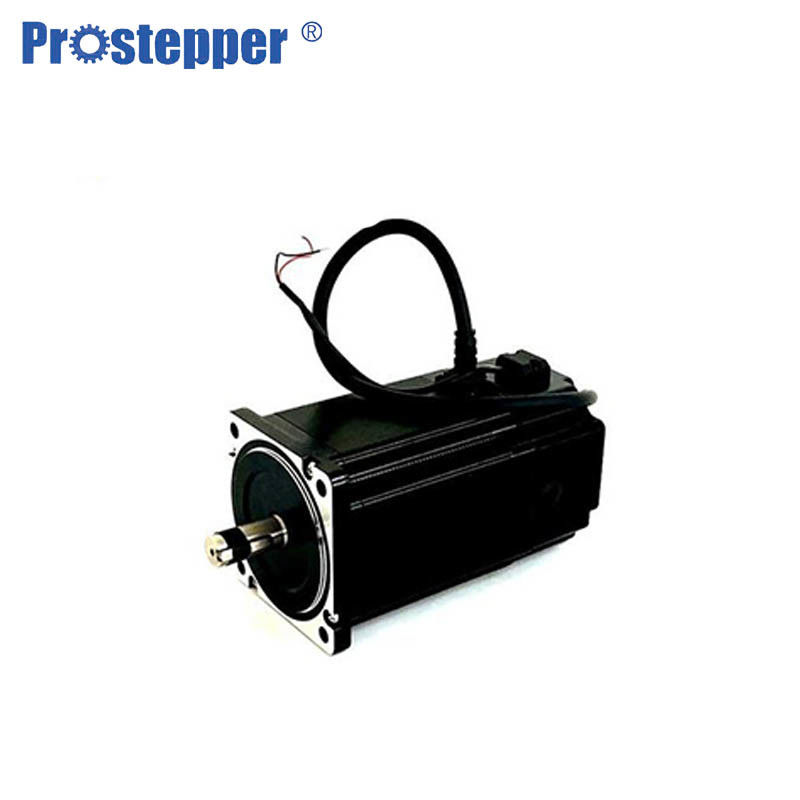

1.3N.M 5A Nema 23 76mm Hybrid Linear Stepper Motor

1.8 Degree NEMA23 Stepping Motor Brake Stepper Motor With Encoder For medical system

Product description of 2 phase hybrid brake stepper motor

• Longer Life

  Stepping motor is a mechanical structure,which does not need be changed by electric brush or Hall sensor,thus reducing the probability and increasing the motor life.Stepping motor life usually determined by the life of the bearing.

• Online testing of technical parameters to ensure the consistency of data product parameters
• Material quality: The coat is 304 stainless steel, the water jacket is the high compression casting aluminum tube, the red copper coil.
• Electromagnetic furnace optimization design, lift torque, reduce temperature rise, so that the motor running smoothly

Specifications of brake stepper motor

Encoder Specifications                                                         Brake Specifications

Features:

• high precision
• high torque
• durable
• medium size

• Stepping Accuracy: ± 5%
• Resistance Accuracy: ± 10%
• Inductance Accuracy: ± 20%
• Temperature Rise: 80°C Max.
• Ambient Temperature: -20°C ... +50°C
• Insulation Resistance: 100MOhm min. 500V DC
• Withstand: 500V AC, 1 Minute

Why choose stepper motor

• While these applications are the most common, they’re a fraction of what stepper motors can be used for. Generally speaking, any application that requires highly accurate positioning, speed control, and low speed torque can benefit from the use of stepper motors.
• While servo motors have their place in industry as well as numerous advantages of their own, stepper motors are an ideal solution in many applications.
• Stepper motors are a robust motion control technology and can be found inside of many common machines and equipment. To learn more, browse stepper motors at Prostepper from the world’s leading suppliers.

Advantage of Product

• Prostepper motor use of a unique stator thechnology to ensure that the motor stator teeth grinding and smooth high accuracy of the hole, the work of the process of speed stability is not lose step
• Prostepper motor coil is made of 100% pure copper enameled wire , advanced winding threading process, copper wire is evenly arranged, good overall motor stability , the long time does not appear deformation and noise and so on.
• High quality motor steel, the load on the shaft can produce high torque the inertia ratio, and can eliminate, the system error due to the use of reduction gears
