| Place of Origin: | JIANGSU,CHINA |
|---|---|
| Brand Name: | Prostepper |
| Certification: | CE.ISO.ROHS.SGS |
| Model Number: | PST42H235-4P12G |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | 38.5*24*23 |
| Delivery Time: | 7-25 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 250000pcs per/ month |
| Brand: | Prostepper | Type: | Gear Box Type |
|---|---|---|---|
| Model: | PST42H235-4P12G | Step Angle: | 1.8degree |
| Storage Temperature Range: | -20°C~ +50°C | Current: | 1.2A |
| Motor Lenght: | 35mm | Weight: | 0.24kg |
| High Light: | 1.8 Degree Hybrid Stepper Motor,35mm Hybrid Stepper Motor,35mm hybrid linear stepper motor |
||

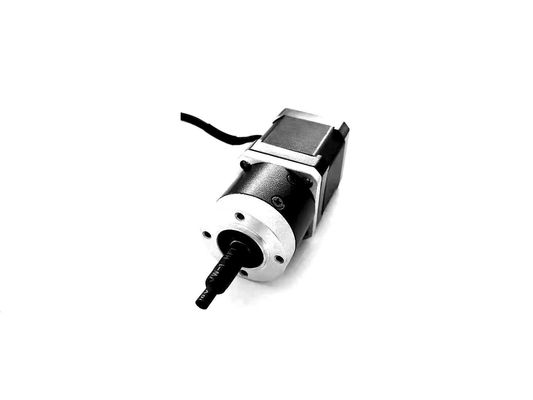

Nema17 Gear Box Type Stepping Motor 42mm 1.8 degree Hybrid Stepper Motor
Description of Gear Box Stepper Motor
1. Accurate Speed Control
The rotational speed of the stepping motor can be precisely controlled ,By controlling the frequency of the electric pulse.
2. Online testing of technical parameters to ensure the consistency of data product parameters
3.The material is selected from well-known manufacturers at home and abroad. The advantages are light weight, good heat dissipation performance, good thermal conductivity, die-casting, good plasticity, higher elongation than iron, low noise, good motion stability, the disadvantages are high price, low hardness
4. Accurate position Control
The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.
| Number of phase | 2 |
| Basic step Angle | 1.8 degree |
| Rated Current | 1.2A |
| Resistance | 2.1ohm |
| Inductance | 3.9mH |
| Holding Torque | 0.25N.m |
| Weight | 0.24kg |
Gear Box Stepper Motor's specifications
Why choose stepper motor
While these applications are the most common, they’re a fraction of what stepper motors can be used for. Generally speaking, any application that requires highly accurate positioning, speed control, and low speed torque can benefit from the use of stepper motors.
While servo motors have their place in industry as well as numerous advantages of their own, stepper motors are an ideal solution in many applications.
Stepper motors are a robust motion control technology and can be found inside of many common machines and equipment. To learn more, browse stepper motors at Prostepper from the world’s leading suppliers.
The Advantages of Stepper Motors
Not every application will benefit from a stepper motor, but in the right environment stepper motors can be ideal. First, stepper motors have full torque at standstill, and the rotation angle of the motor is proportional to the input pulse. Essentially, stepper motors offer excellent speed control, precise positioning, and repeatability of movement.
Additionally, stepper motors are highly reliable since there are no contact brushes in the motor. This minimizes mechanical failure and maximizes the operation lifespan of the motor. These motors can be used in a wide range of environments, as many different rotational speeds can be achieved because the speed is proportional to the frequency of pulse inputs.
Applications include:
Robotics
Paper feed mechanisms
Teletype printers
Small machine tools
Computer peripherals
X-Y plotters
