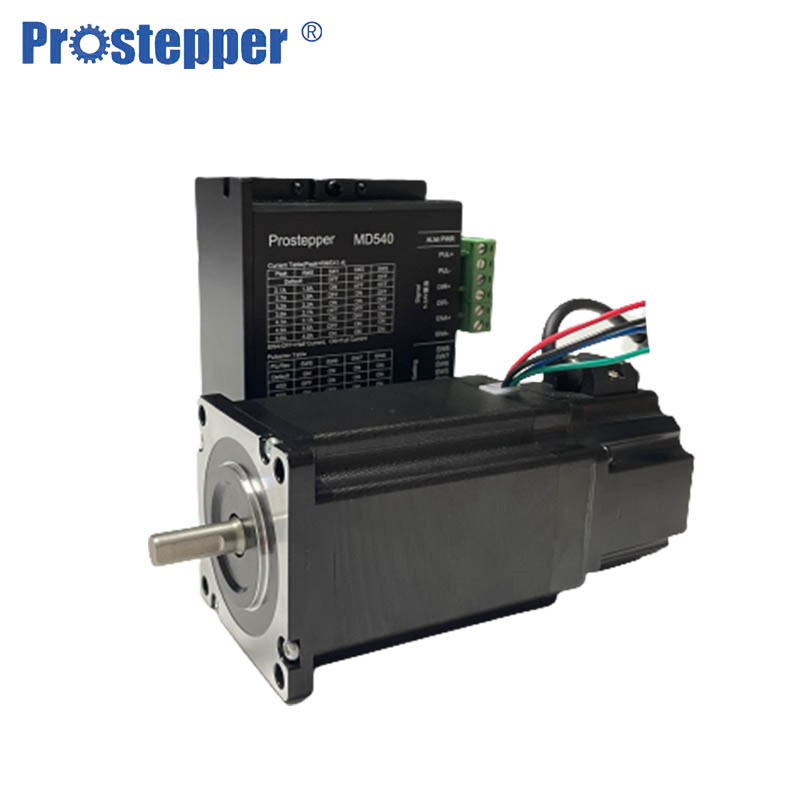

1.8 Degree Nema 24 Stepper Motor

Basic Information
Place of Origin: JIANGSU,CHINA
Brand Name: Prostepper
Certification: CE/ISO/RoHS.
Model Number: PEM60H269E1KM
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: 38.5*24*23
Delivery Time: 7-25 work days
Payment Terms: T/T, Western Union, L/C,
Supply Ability: 250000pcs /per month
Brand: Prostepper Step Angle(degrees): 1.8 Degree
Product Model: PEM60H269E1KM Brake Torque: 1.3N.m
Current: 5A Motor Length: 69mm
Weight: 1.5kg MOQ: 1PCS
High Light:

1.8 Degree Nema 24 Stepper Motor

,

69mm Nema 24 Stepper Motor

,

69mm high torque stepper motor

NEMA24 1.8 degree Stepping Motor Encoder stepper motor with encoder For cnc machine






Specifications of brake stepper motor

Holding Torque 2.2N.m
Related Current 5A/Phase
Resistance 0.34Ω/Phase
Inductance 1.8MH/Phase
Inertia 490g.cm²
Index

×

Output Differental
Black Torque 1.5N.m




Encoder Specifications                                                    Brake Specifications

Model E1K E2k5z Model PEM57/PEM60
Resolution 1000cpr/4000ppr 2500cpr/10000ppr Brake Type Holding Brake
Type Incremental encoder Incremental encoder Voltage 24VDC±5%
Output Mode Differental Differental Power 5W
Output Signal A+A-;B+B- A+A-;B+B-;Z+Z- Torque 1.3N.m
Supple Voltage 5VDC±5% 5VDC±5% Release Time 50ms



1.8 Degree Nema 24 Stepper Motor 01.8 Degree Nema 24 Stepper Motor 1












Product description of 2 phase hybrid brake stepper motor








Quality control process:



1. Incoming inspection: The inspection shall be conducted according to the Requirements of the Incoming Inspection Specification or the product drawing



2. Monitoring and measurement of production process (self-inspection - inspection - batch production)



3. Final inspection and test



4. All inspectors must be trained and then put on duty



5. Nonconforming products shall be executed in accordance with Nonconforming Product Control Procedures



6. Raw material inspection



7. Inspecting according to the standard of testing raw material or the drawing



8. Monitoring and measurement in production process



9. Self checking-tested by QC-Batches production



10. Final checking and make experiment



11. All products should be through testing by the professional equipment
