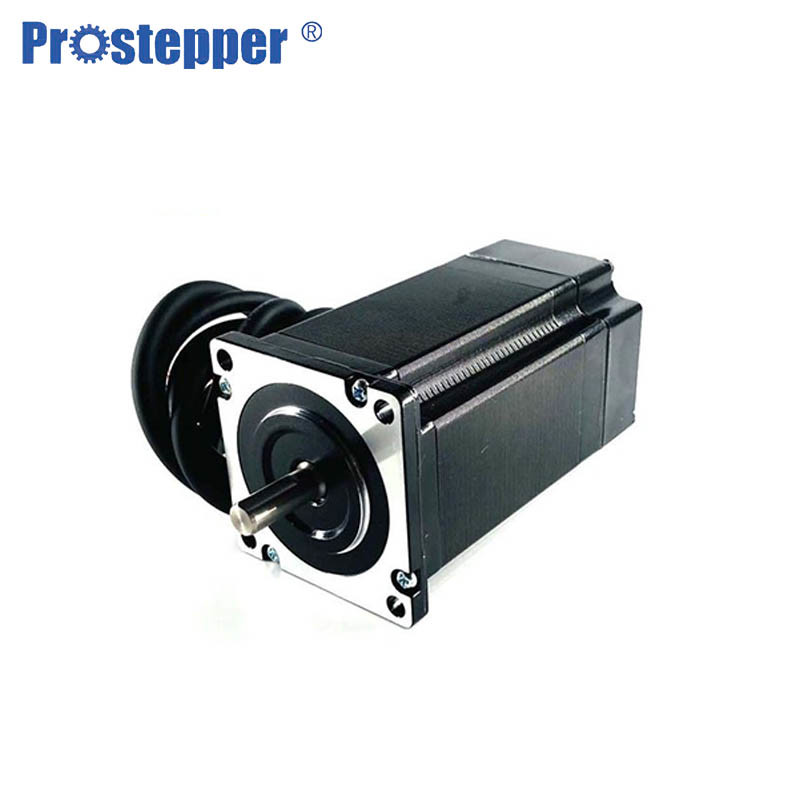

2.1N.M 1.8 Degree Nema 24 60mm Bipolar Stepper Motor

Basic Information
Place of Origin: China
Brand Name: Prostepper
Certification: ISO/CE/RoHS
Model Number: PEM60H268E1KS
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: Packed in carton firstly, and then reinforced with film for the outer packing.
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 250000pcs/Month
Product Name: Nema24 Encoder Stepper Motor Holding Torque: 2.1N.m
Related Current: 5 A/Phase Motor Size: 60mm
Resistance: 0.34Ω/Phase Step Angle: 1.8 Degree
Encoder Resolution: 1000CPR
High Light:

60mm Bipolar Stepper Motor

,

Nema 24 Bipolar Stepper Motor

,

60mm bi polar stepper motor

NEMA24 1.8 degree black encoder bipolar stepper motor for Robort



What is stepper motor  ?



Stepper motor is a control motor that provide precise position and speed control.



Stepper motor can convert an electrical pulse signal into an angular and linear motion, no need for feedback device to sense position.



Also, the speed and acceleration of the motor rotation can be controlled by controlling the pulse frequency to achieve the purpose of speed regulation.



The motor and drive constitutes a low cost control system that is simple to construct.



Prostepper's motor with encoder has its own calling system, please check the following :





Specification of our PEM 60 series Encoder stepper motor



Mode No:PEM57H276E1KS

Holding Torque 2.1N.m
Related Current 5A/Phase
Resistance 0.34/Phase
Inductance 1.1MH/Phase
Inertia 490g.cm²
Index ×
Output Differental
Encoder Resolution 1000CPR



Figure Dimensions(Unit=mm)

2.1N.M 1.8 Degree Nema 24 60mm Bipolar Stepper Motor 0





Speed/Torque Characteristics(Reference Value)

2.1N.M 1.8 Degree Nema 24 60mm Bipolar Stepper Motor 1







The quality control of hybrid stepper motor in the all process



Raw material inspection



Inspecting according to the standard of testing raw material or the drawing



Monitoring and measurement in production process



Self checking-tested by QC-Batches production



Final checking and make experiment



All products should be through testing by the professional equipment



Which application of our stepper motor ?



Our products have wide applications in office automation such as printers, typewriters, copying machines and fax machines; automatic controls in automobile, machinery, textile, bank, monitor, medical instrument, stage lighting and Industrial Communication Device; household appliances such as kitchen appliance, water heater and sewing machine.



Do you have completed service system ?



Pre-Sales Service:

• Provide details about the production procedure of stepper motor

• Assign engineers for installation and testing stepper motor



Sales Service:

• Customized solution designs of stepper motor

• Product rendering and steel structure drawing stepper motor

• Company successful project examples and visits to our production and R&D base



After-Sales Service:

• One-year quality warranty with lifelong maintenance.

• Free guarantee repair l): free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.



• Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.

• Spare parts: necessary spare parts are provided together with products to customers.

• Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.



• Telephone investigation:

our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.



• Site instruction service of installation is available.
