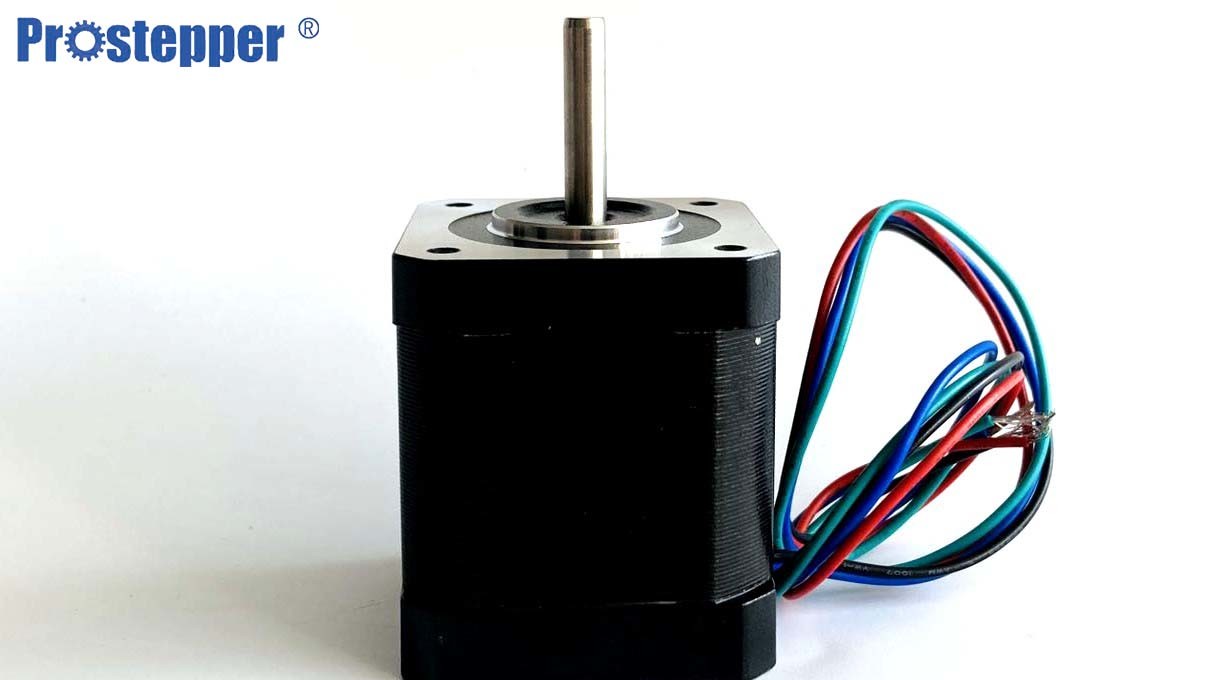

2 Phase 57mm 0.8N.M 1.8 Degree NEMA Stepper Motor

Basic Information
Place of Origin: JIANGSU,CHINA
Brand Name: Prostepper
Certification: CE.ISO.ROHS.SGS
Model Number: PST57H245-4P20
Minimum Order Quantity: 10pcs
Price: USD10.5-14.3/PCS
Packaging Details: 38.5*24*23
Delivery Time: 7-25 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 250000pcs per/ month
Holding Torque: 0.8N.m Brand: Prostepper
Moder: PST57H245-4P20 Colour: Black&Sliver
Weight: 0.52kg Motor Length: 45.5mm
High Light:

1.8 Degree NEMA Stepper Motor

,

57mm NEMA Stepper Motor

,

57mm hybrid stepper motor

NEMA23 1.8 degree 57mm hybrid stepper motor 2 phase stepping motor



2 Phase 57mm 0.8N.M 1.8 Degree NEMA Stepper Motor 0

Specifications

2 Phase 57mm 0.8N.M 1.8 Degree NEMA Stepper Motor 1





Mode No PST57H251-4P10

PST57H251-4P20



PST57H251-4P30
Holding Torque 0.8N.m
Related Current 1A/Phase 2A/Phase 3A/Phase
Resistance 4.7 Ω/Phase 1.25Ω /Phase 0.57Ω/Phase
Inductance 10.8MH/Phase 2.7MH/Phase 1.2MH/Phase
Inertia 180g.cm2
Weight 0.52kgs
Length 45.5mm
Connection P
Mode No PST57H245-4P10

PST57H245-4P20



PST57H245-4P30
Holding Torque 0.8N.m
Related Current 1A/Phase 2A/Phase 3A/Phase
Resistance 4.7 Ω/Phase 1.25Ω /Phase 0.57Ω/Phase
Inductance 10.8MH/Phase 2.7MH/Phase 1.2MH/Phase
Inertia 180g.cm2
Weight 0.52kgs
Length 45.5mm
Connection P










Description of NEMA23 stepper motor

  1. Accurate position Control
  2. The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.
  3. Forward/Reverse Rotation,Pause and Hold

    The forward /reverse rotation of the stepping motor can be controlled by the input sequence of the controlled electric pulses.

  4. The Fulling product line is sold to major manufacturing Companies for Industry of automation, medical andhealth care equipment, printer machine, packing device,Information Technology,household appliance
  5. product,AGV and automobile.
  6. Stepper motors are economical, accurate, and easy to control, and they can operate reliably in a variety of environments (depending on the level of protection IP chosen) preferably in machines with additional enclosures or in clean environments

Primary Competitive Advantages:

Applications of Stepper Motors

Stepper motors are diverse in their uses, but some of the most common include:

Quality assurance:


1.All stepper motors have CE and RoHS certification
2.All motors are tested by a toasting machine for 72 hours
3.All the motors will be shipped after testing





2 Phase 57mm 0.8N.M 1.8 Degree NEMA Stepper Motor 22 Phase 57mm 0.8N.M 1.8 Degree NEMA Stepper Motor 3

Why choose stepper motor



While these applications are the most common, they’re a fraction of what stepper motors can be used for. Generally speaking, any application that requires highly accurate positioning, speed control, and low speed torque can benefit from the use of stepper motors.

While servo motors have their place in industry as well as numerous advantages of their own, stepper motors are an ideal solution in many applications.

Stepper motors are a robust motion control technology and can be found inside of many common machines and equipment. To learn more, browse stepper motors at Prostepper from the world’s leading suppliers.
