Place of Origin: | JIANGSU,CHINA |
---|---|
Brand Name: | Prostepper |
Certification: | CE.ISO.ROHS.SGS |
Model Number: | PST42H231-4P12G |
Minimum Order Quantity: | 1pcs |
Price: | Negotiable |
Packaging Details: | 38.5*24*23 |
Delivery Time: | 7-25 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 250000pcs per/ month |
Brand: | Prostepper | Product Model: | PST42H231-4P12G |
---|---|---|---|
Current: | 1.2A | Motor Type: | Gear Box Type |
Weight: | 0.2kg | MOQ: | 1PCS |
Step Angle: | 1.8degree | Lenght: | 31mm |
High Light: | 1.2A Hybrid Linear Stepper Motor,42mm Hybrid Linear Stepper Motor,42mm hybrid linear actuator |

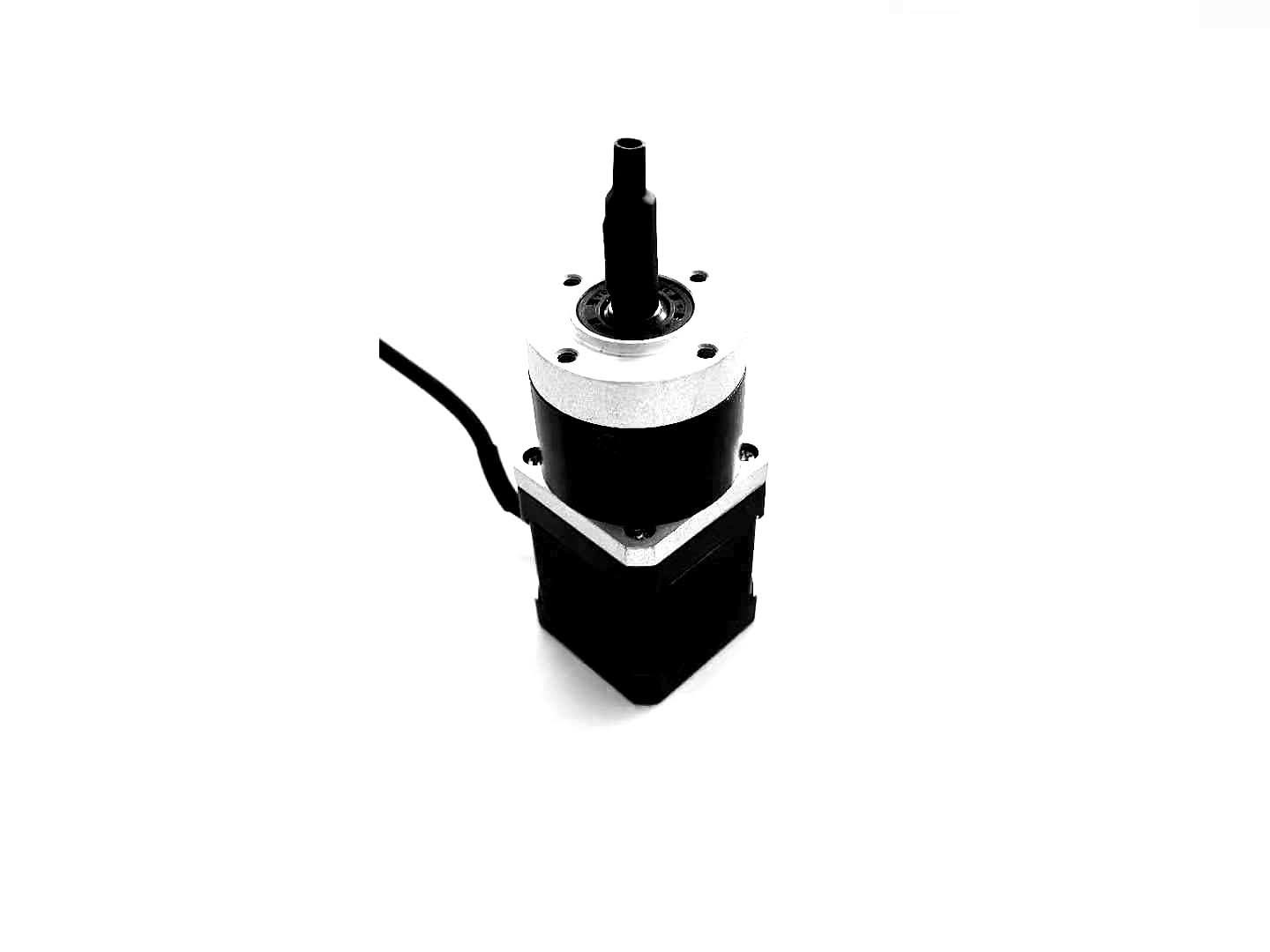

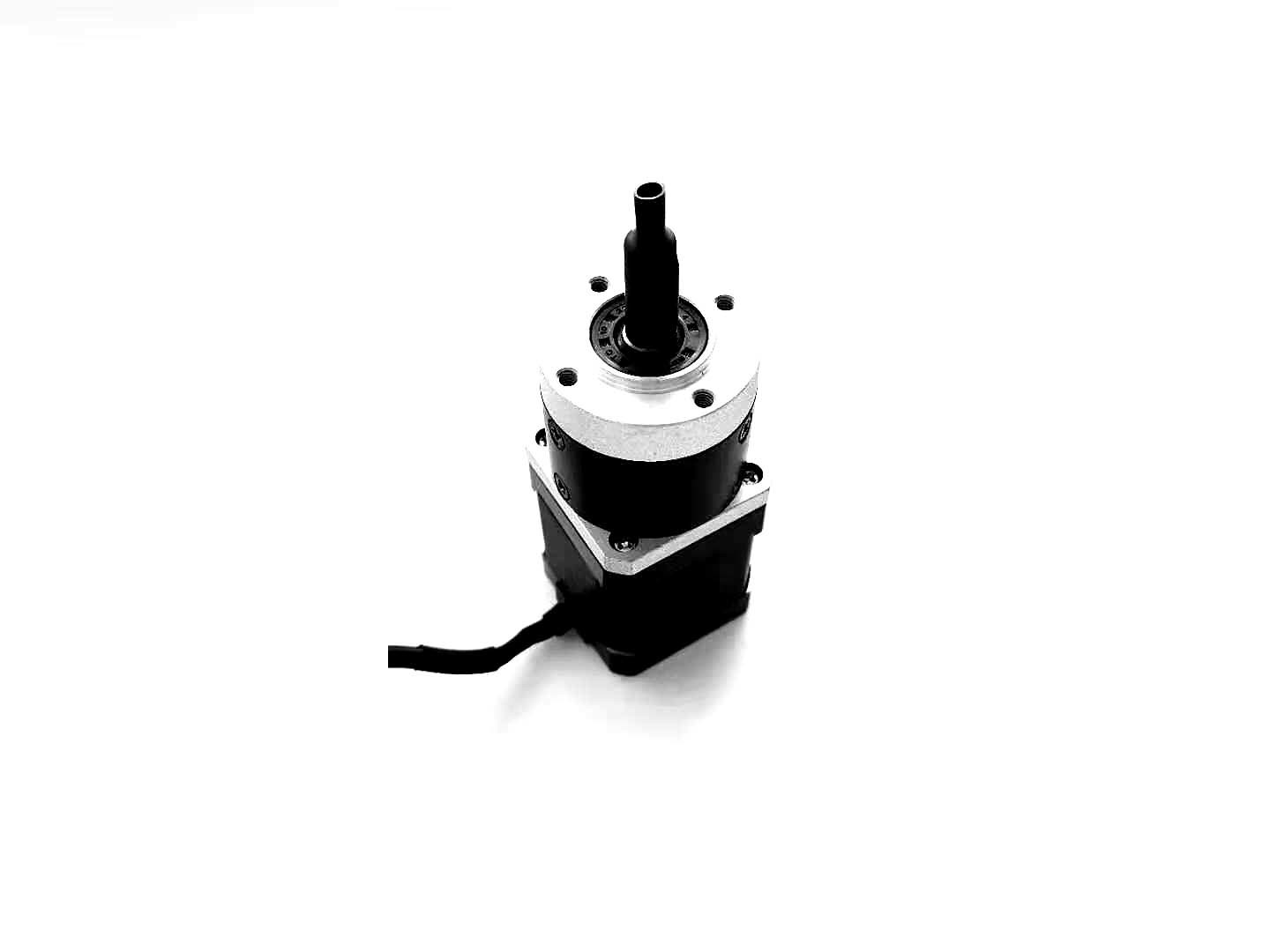

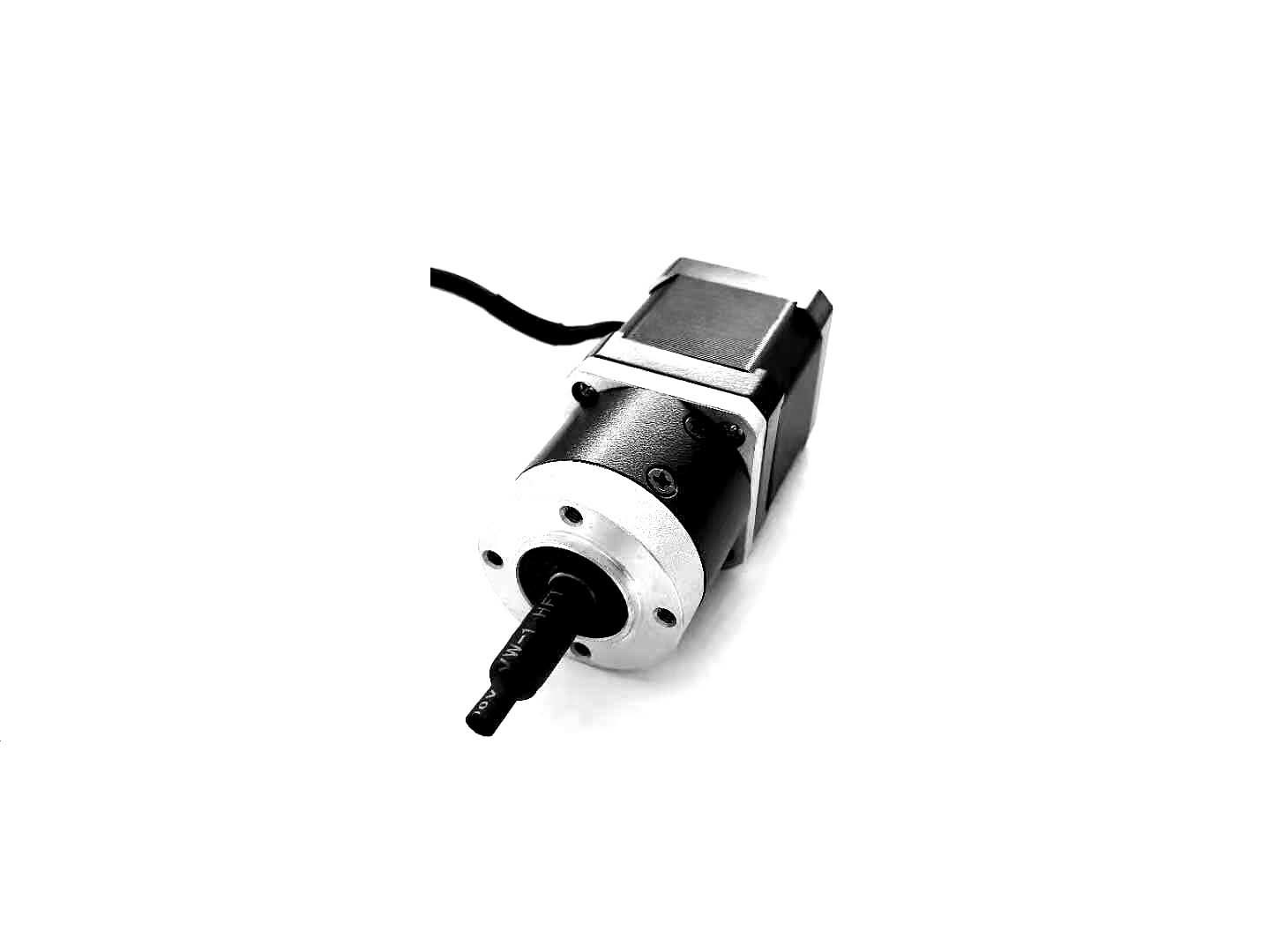

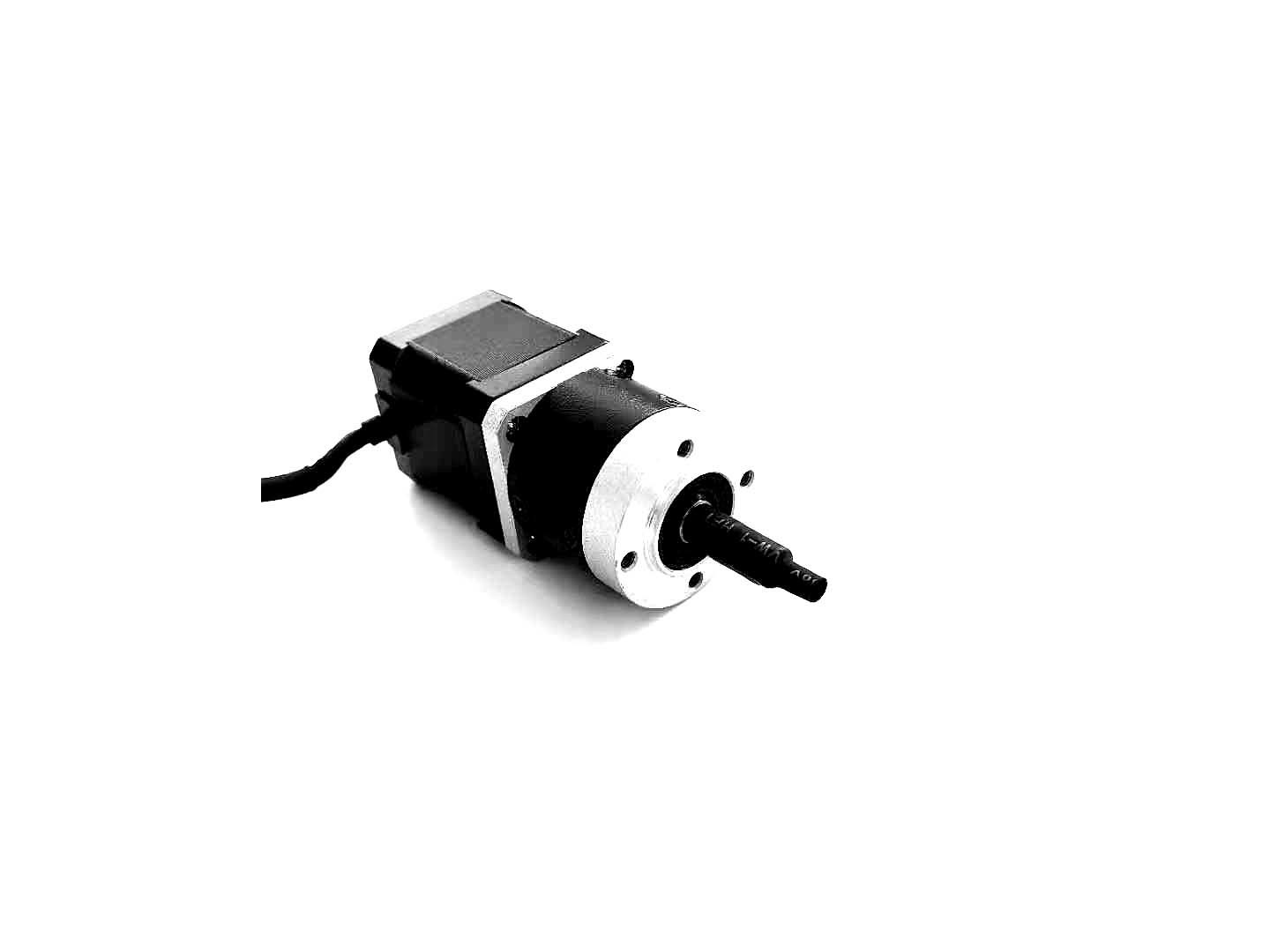

Nema17 Gear Box Type Stepper Motor 1.8 Degree Hybrid Stepper Motor
Description of Gear Box Stepper Motor
specifications
Number of phase | 2 |
Basic step Angle | 1.8 degree |
Rated Current | 1.2A |
Resistance | 1.8ohm |
Inductance | 2.4mH |
Holding Torque | 0.25N.m |
Weight | 0.2kg |
ReductionStage |
Reduction Ratio |
Ratio Absolute |
Rated Torque |
Ultimate Torque |
Efficiency | L2mm |
1 | 3.7 | 3.7 | 2N.m | 6N.m | 90% | 30.6 |
2 | 10.2 | 10.2 | 6N.m | 18N.m | 81% | 42 |
13.7 | 13.7 | |||||
19.2 | 19.2 | |||||
3 | 32.5 | 32.5 | 12N.m | 36N.m | 73% | 53.2 |
50.9 | 50.9 | |||||
71.2 | 71.2 |
Gear Box Stepper Motor 's specifications
