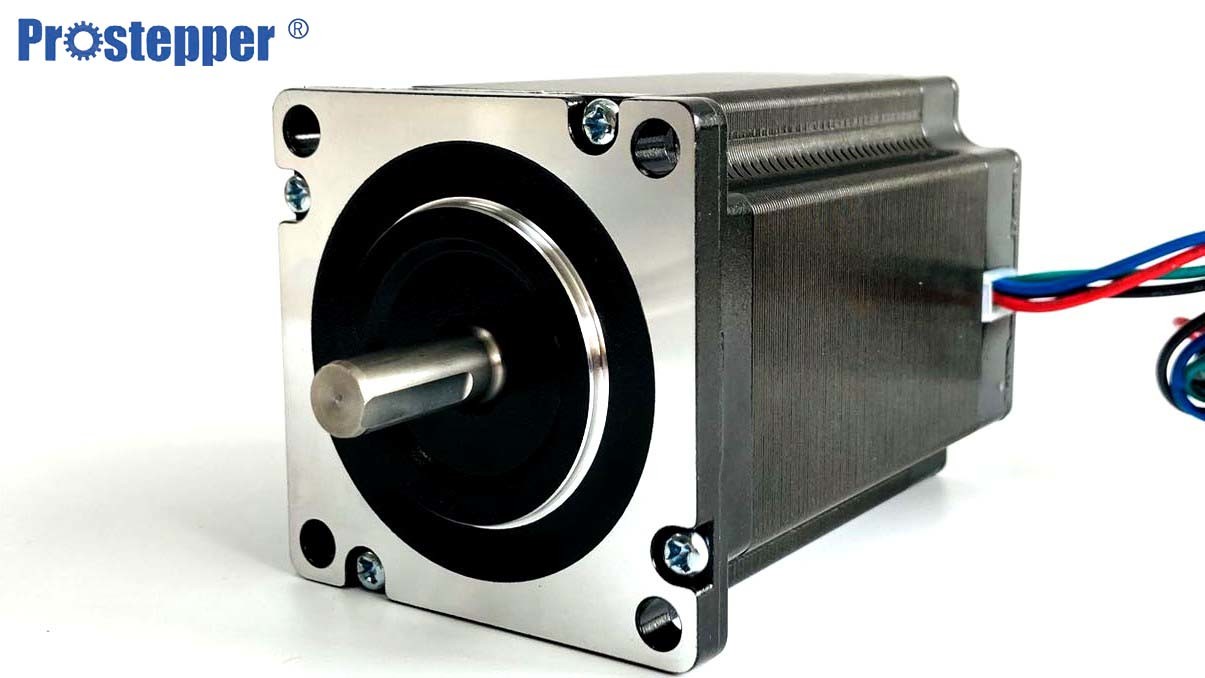

60mm 1.8 Degree Nema 24 1.5N.M NEMA Stepper Motor

Basic Information
Place of Origin: JIANGSU,CHINA
Brand Name: Prostepper
Certification: CE.ISO.ROHS.SGS
Model Number: PST60H256-4P20
Minimum Order Quantity: 10pcs
Price: USD15.3-20.7/PCS
Packaging Details: 38.5*24*23
Delivery Time: 7-25 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 250000pcs per/ month
Motor Model: PST60H256-4P20 Brand: Prostepper
Motor Type: NEMA24 Hybrid Stepper Motor Length: 47mm
Certification: CE/ ISO/RoHS Storage Temperature Range: -20°C~ +50°C
Dielectric Strength: 500V AC 1min Shaft Radial Play: 0.02Max(450g-load)
High Light:

1.5N.M NEMA Stepper Motor

,

60mm NEMA Stepper Motor

,

60mm nema 24 stepper motor

Holding Torque Stepper Motor 2N.M Nema 23 Hybrid Stepper Motor 57mm 1.8 Degree






 Hybrid stepper motor's specifications


Mode No PST60H248-4P20

PST60H248-4P30



PST60H248-4L40
Holding Torque 1.1N.m 1.1N.m 1.1 N.m
Related Current 2A/Phase 3A/Phase 4A/Phase
Resistance 1.7Ω/Phase 0.6Ω /Phase 0.38Ω/Phase
Inductance 3.9MH/Phase 1.5MH/Phase 0.78MH/Phase
Inertia 240g.cm2 240g.cm2 240 g.cm2
Weight 0.6kgs 0.6kgs 0.6kgs
Length 47mm 55.5mm 76.5mm
Connection P P L

Mode No

PST60H256-4P20

PST60H256-4P30



PST60H256-4L40

Holding Torque

1.5N.m

1.5N.m

1.5N.m

Related Current

2A/Phase

3A/Phase

4A/Phase

Resistance

1.8Ω/Phase

0.76Ω /Phase

0.44Ω/Phase

Inductance

5.7MH/Phase

2.3MH/Phase

1.1MH/Phase

Inertia

340g.cm2

340g.cm2

340 g.cm2

Weight

0.8kgs

0.8kgs

0.8kgs

Length

56mm

56mm

56mm

Connection

P

P

L



  1.  Stepping Accuracy: ± 5%
  2. Resistance Accuracy: ± 10%
  3. Inductance Accuracy: ± 20%
  4. Temperature Rise: 80°C Max.
  5. Ambient Temperature: -20°C ... +50°C
  6. Insulation Resistance: 100MOhm min. 500V DC
  7. Withstand: 500V AC, 1 Minute

Description of NEMA23 hybrid stepper motor





60mm 1.8 Degree Nema 24 1.5N.M NEMA Stepper Motor 0

Applications of 1.8 degree Stepper Motor

How to overcome the vibration and noises of 2-phase hybrid stepper motor when rotating at low velocity?



The vibration and noise of the stepper motor rotating at low velocity its the intrinsic defects, which can be generally overcome by adopting following schemes:

Buter's concern


1. All stepper motors have CE and RoHS certification
2. All motors are tested by a toasting machine for 72 hours
3. All the motors will be shipped after testing

Can you make the motor with customized requirement ?
YES. We have experienced R&D capability and great engineers, Their experience and innovation capability can support customized project.
2. Can you provide the samples?
YES. We can provide the samples, The delivery time is about 7-15 days according to which kind of motor you want
3. What is your MOQ?
It's accordingly to the motor type you order, Our MOQ for gear motor can even 1pc.
