| Place of Origin: | China |
|---|---|
| Brand Name: | prostepper |
| Certification: | CE/ISO/ROHS |
| Model Number: | PST28H232-4P10 |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiable |
| Packaging Details: | 39*24*23 cm |
| Delivery Time: | 10-15working days |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 250000pcs per month |
| Name: | Nema11 28mm 2phase Hybrid Stepper Motor | Color: | Black And Sliver |
|---|---|---|---|
| Holding Torque: | 0.08 N.m | Related Current: | 0.1A/Phase |
| Weight: | 0.1kg | Length: | 32mm |
| Connection: | P Connector (Rated Current Less Than 3Amp) | Application: | Medical Equipment |
| High Light: | 2 Phase Nema 24 Stepper Motor,0.08N.M Nema 24 Stepper Motor,32mm Motor Holding Torque |
||

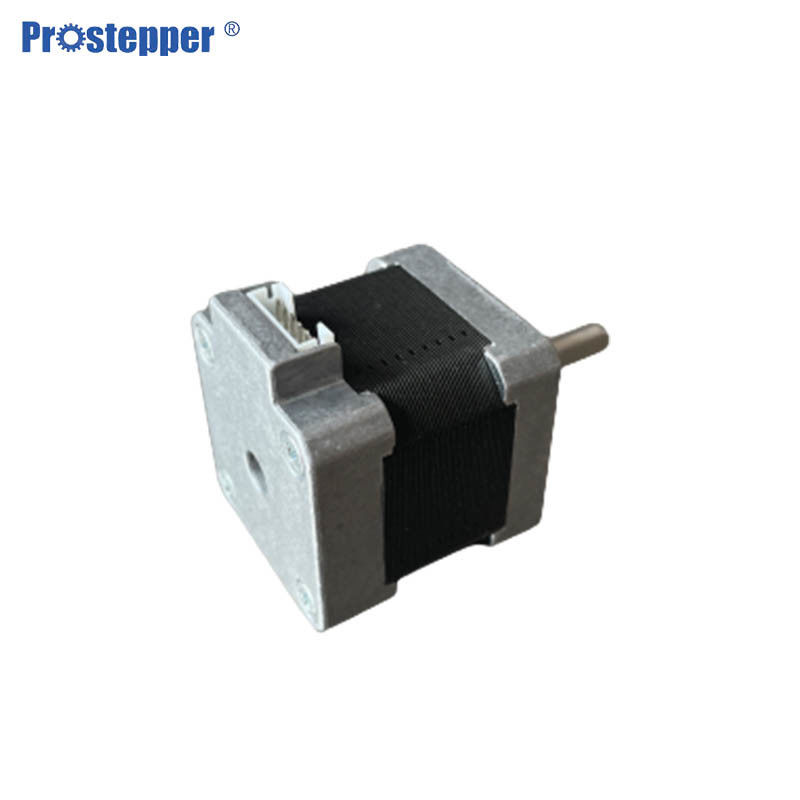

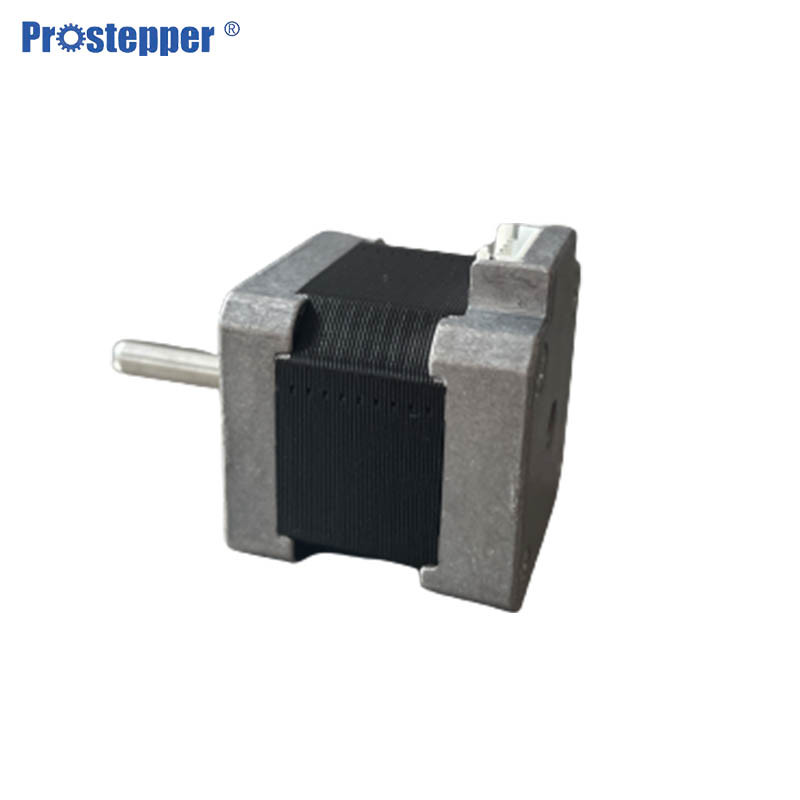

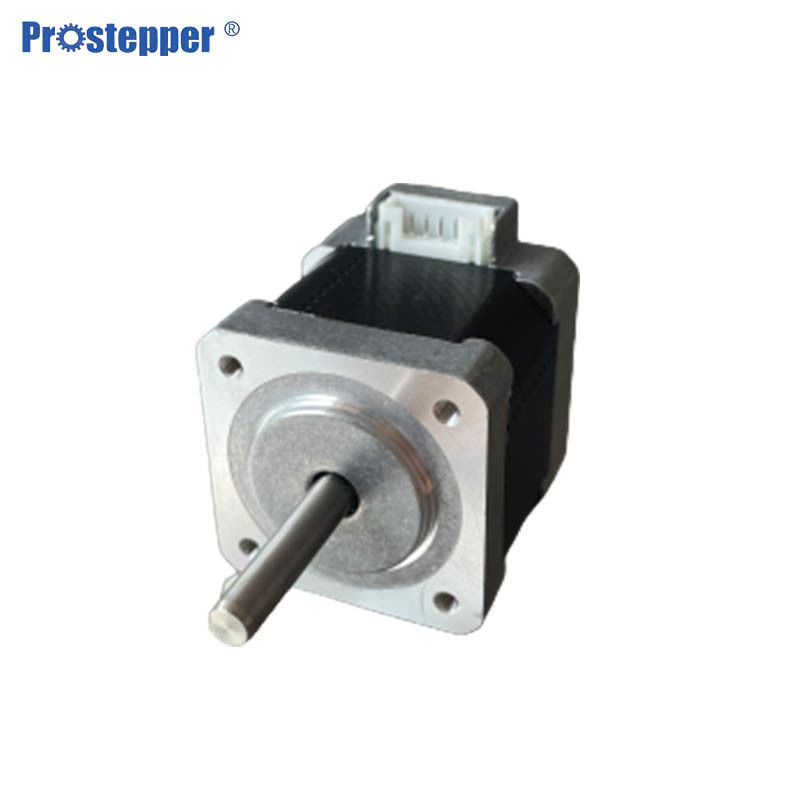

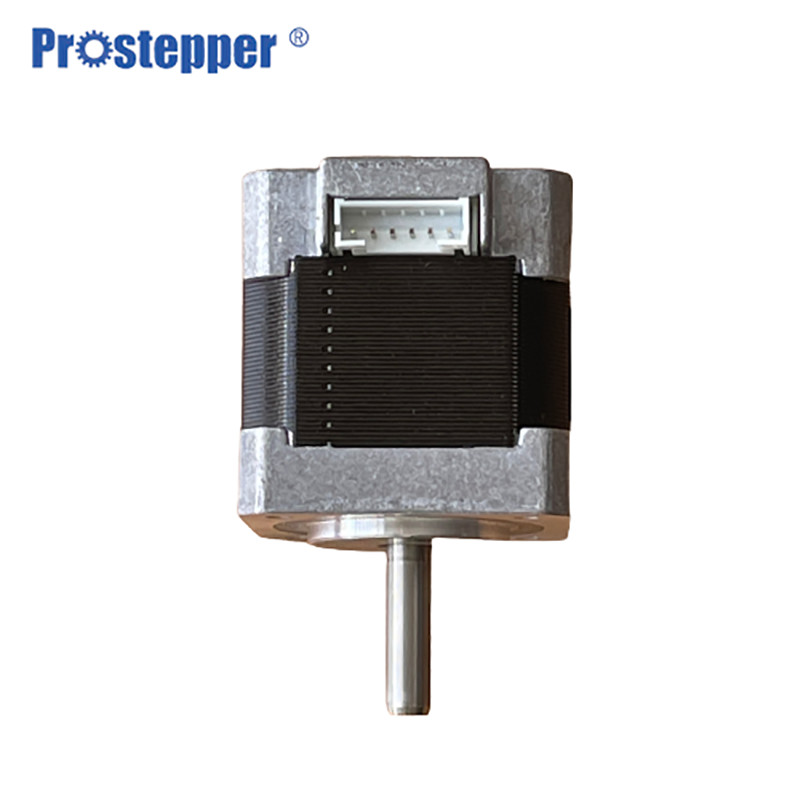

2 Phase 1.8 degree Nema11 1A 0.08N.M 32mm length Bi Polar hybrid Stepper Motor
Professional manufacturer for stepper motor, have NEMA8, NEMA11. NEMA14, NEMA17, NEMA23, NEMA34
1.8 degree, 0.9 degree. Single shaft and double shaft
Our Advantage and Ideals:
PROSTEPPER registered capital is 12 million yuan, factory area is 12,000 square meters, and the production site is 10,000 square meters.It has all kinds of high precision automation machining more than 100 sets, yearly output is 1,500,000sets.
PROSTEPPER is one of the strongest motor manufacturers in domestic of China.
Quality Guarantee:
Certificate: CE / ROHS / ISO9001
Quality control: internal control
Applications
Use for robots stepper motor, electric automatic equipment stepping motor, medical instrument stepping motor, advertisement instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor, CNC router stepper motor,3D Printer stepper motor.
General specifications
| Specification | Motor Characteristics | |
| Insulation Class | Class B130°C | |
| Step Angle Accuracy | ±0.09° | |
| Withstand Voltage | AC500V (one minute) | |
| Insulation Resistance | 100MQ MIN. 500VDC | |
| Temperature Rise | 80*C MAX | |
| Radial Play | 0.025mm Max. (Load450g) | |
| Axial Play | 0.075mm Max. (Load950g) | |
| Temperature | -10~+50°C (Non Condensing) | |
| Operating Environment | Humidity | 85%RH MAX. (Non Condensing) |
| Medium | No corrosive gas or dust. Not directly in contact with water, oil, etc. | |
| Storage Environment | Temperature | 0~+50°C (Non Condensing |
| Humidity | 85%RH MAX. (Non Condensing) | |
| Life | 5000 Hours MIN. | |
Radial Load&Axial Load
| Motor Size | Shaft Diameter (mm) | Radial Load (N) | Axial Load (N) | ||||||
| Distance from Mounting Surface (mm) | |||||||||
| 5 | 10 | 15 | 20 | 25 | 30 | 35 | |||
| NEMA8 | 4 | 15 | 12 | — | 3 | ||||
| NEMA 11 | 5 | 50 | 35 | 25 | — | 5 | |||
| NEMA 14 | 5 | 50 | 35 | 25 | 20 | — | — | — | 10 |
| NEMA 17 | 5 | 50 | 35 | 25 | 20 | — | — | 15 | |
| NEMA 23 | 8 | 270 | 180 | 130 | 100 | 90 | — | 20 | |
| NEMA 24 | 8 | 200 | 135 | 100 | 82 | 58 | — | — | 30 |
| NEMA 34 | 14 | 620 | 550 | 480 | 390 | 340 | 290 | 260 | 60 |
2-Phase standard type NEMA11 Bi-Polar 1.8゜ stepping motor
28mm 2-Phase Standard Type NEMA11 Bi-Polar stepper motor
Connect type 28mm 2-phase NEMA11 Bi-polar stepper motor
| Mode No | PST28H232-4P05 |
PST28H232-4P10
|
PST28H245-4P10
|
PST28H245-4P15 |
| Holding Torque | 0.08 N.m | 0.08 N.m | 0.12 N.m | 0.12 N.m |
| Related Current | 0.5A/Phase | 1A/Phase | 1A/Phase | 1.5A/Phase |
| Resistance | 20 Ω /Phase | 5.7 Ω /Phase | 8.5 Ω /Phase | 3Ω /Phase |
| Inductance | 14MH/Phase | 3.5MH/Phase | 6.5MH/Phase | 3MH/Phase |
| Inertia | 9 g.cm2 | 9 g.cm2 | 12 g.cm2 | 12 g.cm2 |
| Weight | 0.1kgs | 0.1kgs | 0.15kgs | 0.15kgs |
| Length | 32mm | 32mm | 45mm | 45mm |
|
Connection
|
P | P | P | P |
| Mode No | PST28H251-4P10 | PST28H251-4P15 |
| Holding Torque | 0.14 N.m | 0.14 N.m |
| Related Current | 1A/Phase | 1.5A/Phase |
| Resistance | 9.9Ω /Phase | 3.5Ω /Phase |
| Inductance | 6.7MH/Phase | 3.1MH/Phase |
| Inertia | 18 g.cm2 | 18 g.cm2 |
| Weight | 0.2kgs | 0.2kgs |
| Length | 51mm | 51mm |
| Connection | P | P |
Speed/Torque Characteristics (Reference Value)
