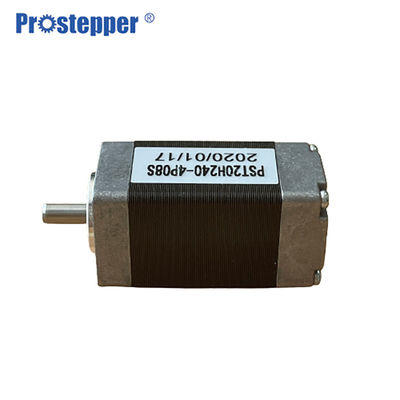

CE 20mm Nema 8 0.36N.M Hybrid Stepper Motor

Product description of encoder stepper motor

1. Material quality: The coat is 304 stainless steel, the water jacket is the high compression casting aluminum tube, the red copper coil.

2. The forward /reverse rotation of the stepping motor can be controlled by the input sequence of the controlled electric pulses.

3. Automatic machine operation, stable automatic work, high processing efficiency.

   Mechanical size 100% meet the requirements, to ensure that there is no greater error in the use process

4. Longer Life

   Stepping motor is a mechanical structure,which does not need be changed by electric brush or Hall sensor,thus reducing the probability and increasing the motor life.Stepping motor life usually determined by the life of the bearing.

Encoder stepper motor of Specifications

•
  1. Shaft Dia= 5mm
• 2. Step Angle: 1.8
• 3. Phase Current 1.2A
• 4. Phase Resistance: 1 .5Ohm
• 5. Phase Inductance: 2.8mH
• 6. Holding Torque: 40N.cm
• 7. Braking Torque: 2.2N.cm
• 8. Rotor Inertia: 54g.cm32;
• 9. Wire: 4(Blue, green, black, red)
• 10. Max. Temperature Rise: 80"C (rated current, 2 phase on)11. Operating Temperature: -20*C-+70"C
• 11. Insulation Resistance: 100 MQ Min., 500VDC
• 12. Radial Clearance: 0.02Max, (450g-Load)
• 13. Axial Clearance: 0.08Max. (450g-Load)

NEMA8 Encoder stepper motor 2 phase hybrid 1.8 degree stepper motor

Encoder stepper motor Application

Stepper motors are diverse in their uses, but some of the most common include:

• 3D printing equipment
• Textile machines
• Printing presses
• Gaming machines
• Medical imaging machinery
• Small robotics
• CNC milling machines
• Welding equipment

Advantage of Product

• Prostepper motor use of a unique stator the chnology to ensure that the motor stator teeth grinding and smooth high accuracy of the hole, the work of the process of speed stability is not lose step
• Prostepper motorcoil is made of 100% pure copper enameled wire , advanced winding threading process, copper wire is evenly arranged, good overall motor stability , the long time does not appear deformation and noise and so on.
• High quality motor steel, the load on the shaft can produce high torque the inertia ratio, and can eliminate, the system error due to the use of reduction gears

Tips: Which types of stepper motor is divided into?

Stepper motor is divided into three types: permanent magnet stepper motor (PM), variable reluctance stepper motor (VR) and hybrid stepper motor (HB).

• PM stepper motor is generally 2-phase, with small torque and volume, its stepping angle is generally 7.5° or 15°.
• VR stepper motor is generally 3-phase; high torque output can be realized; the stepping angle is generally 1.5, but the noise and vibration is large. The rotor magnetic circuit of VR stepper motor is made of soft magnetic materials. There is multi-phase exciting winding on the rotor. The torque is generated by taking advantage of the change in magnetic conductance.
• HB stepper motor, indicating mixing the advantages of PM and VR, is divided into 2-phase, 3-phase and 5-phase. The stepping angle of 2-phase is generally 1.8°, that of 3-phase 1.2° and that of 5-phase is 0.72°. It is mostly widely applied.
