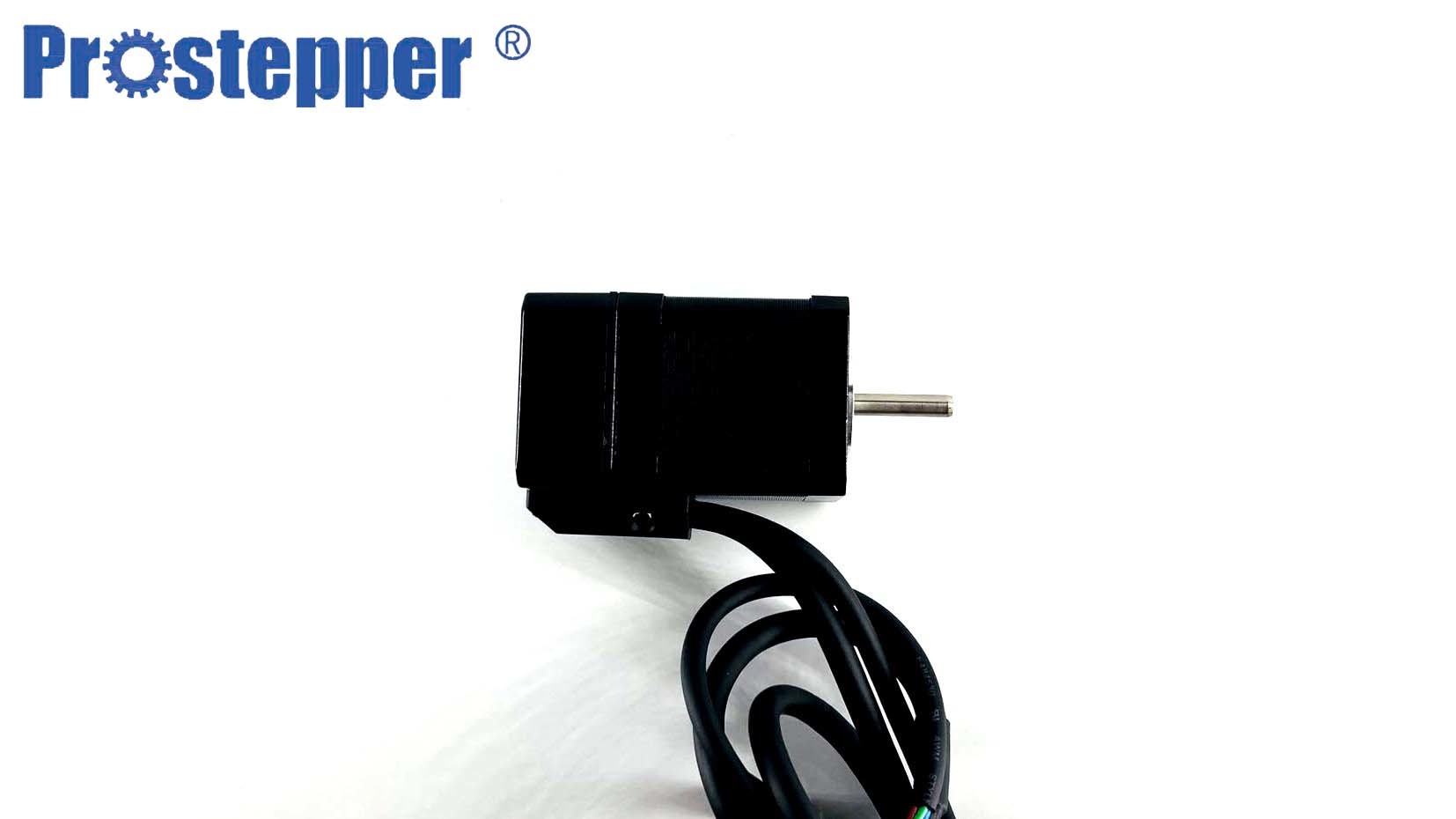

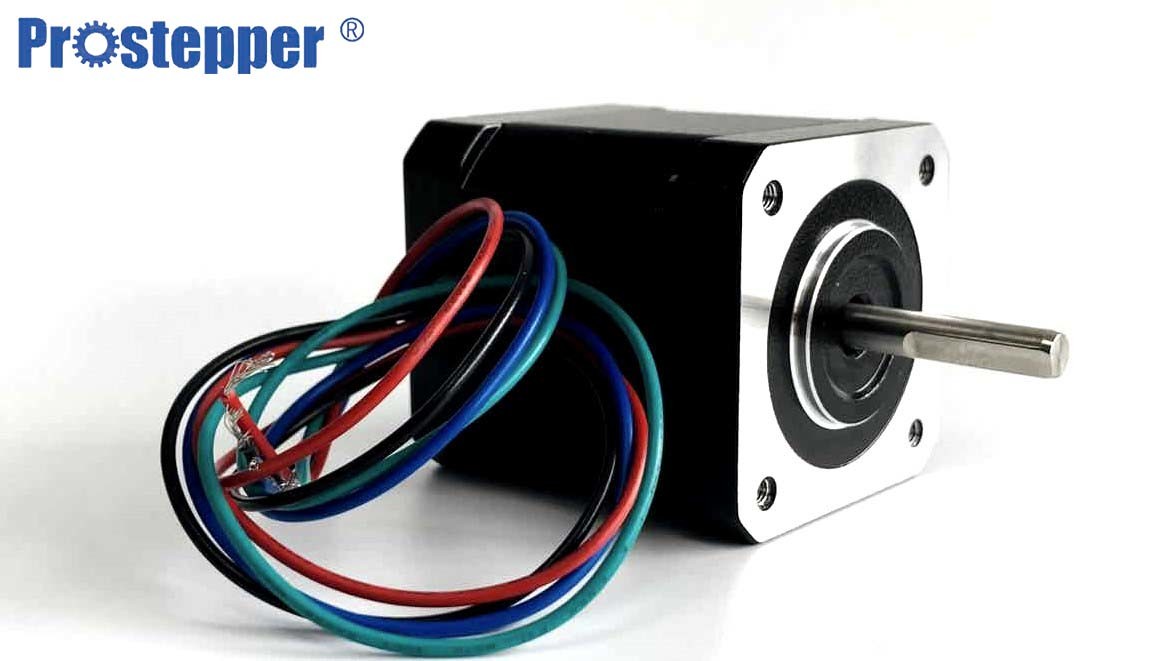

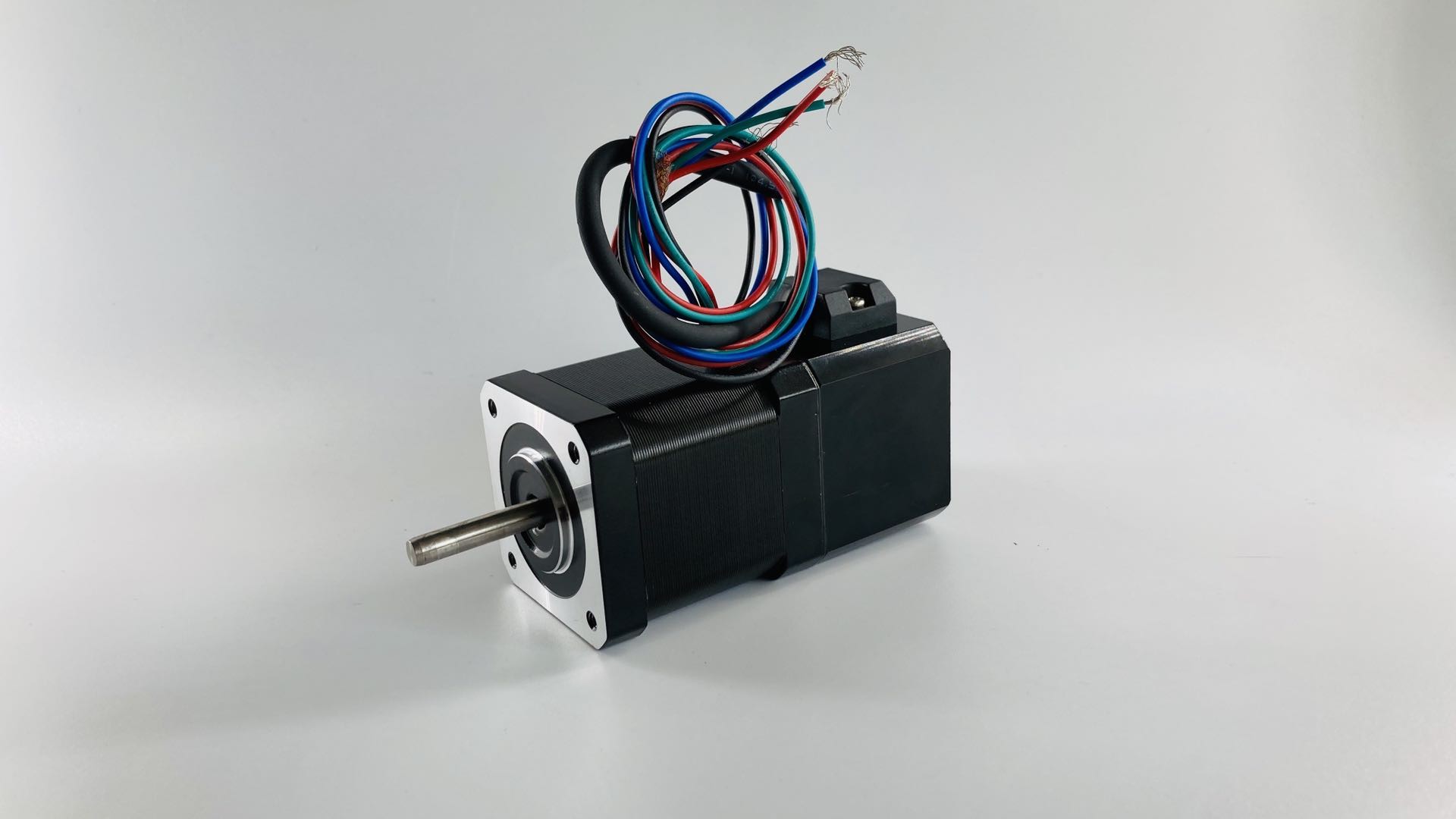

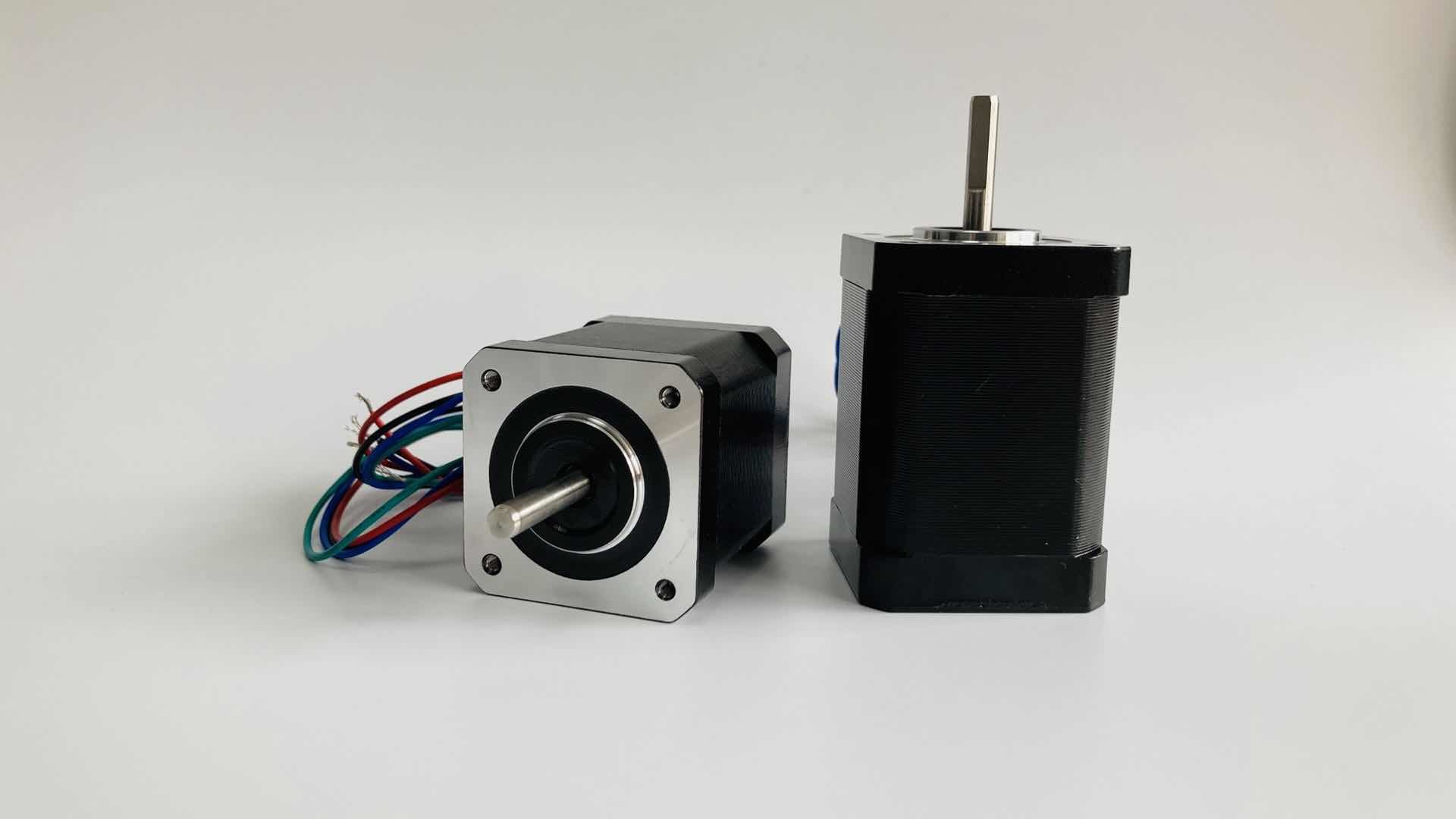

Home Appliances 1N.M SGS NEMA Stepper Motor

NEMA23 1.8 degree 57mm hybrid stepper motor 2 phase stepping motor

Which types of stepper motor is divided into?

• 1.Stepper motor is divided into three types: permanent magnet stepper motor (PM), variable reluctance stepper motor (VR) and hybrid stepper motor (HB).
• 2. PM stepper motor is generally 2-phase, with small torque and volume, its stepping angle is generally 7.5° or 15°.
• 3. VR stepper motor is generally 3-phase; high torque output can be realized; the stepping angle is generally 1.5, but the noise and vibration is large. The rotor magnetic circuit of VR stepper motor is made of soft magnetic materials. There is multi-phase exciting winding on the rotor. The torque is generated by taking advantage of the change in magnetic conductance.
• 4. HB stepper motor, indicating mixing the advantages of PM and VR, is divided into 2-phase, 3-phase and 5-phase. The stepping angle of 2-phase is generally 1.8°, that of 3-phase 1.2° and that of 5-phase is 0.72°. It is mostly widely applied.

  ---

Description of  57mm  hybrid stepper motor

1. Accurate position Control

   The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.

2. High reliability, easy maintenance.Motor rotor structure accurate, no loss of step.Rotor special material, not stuck machine

3. Online testing of technical parameters to ensure the consistency of data product parameters

4. Forward/Reverse Rotation,Pause and Hold

   The forward /reverse rotation of the stepping motor can be controlled by the input sequence of the controlled electric pulses.

5. Longer Life

   Stepping motor is a mechanical structure,which does not need be changed by electric brush or Hall sensor,thus reducing the probability and increasing the motor life.Stepping motor life usually determined by the life of the bearing.

Specifications

NEMA23 stepper motor Application Information

Computer controlled stepper motors are a type of motion-control positioning system. They are typically digitally controlled as part of an open loop system for use in holding or positioning applications.

In the field of lasers and optics they are frequently used in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems.

Commercially, stepper motors are used in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives, intelligent lighting, camera lenses, CNC machines and, more recently, in 3D printers.
