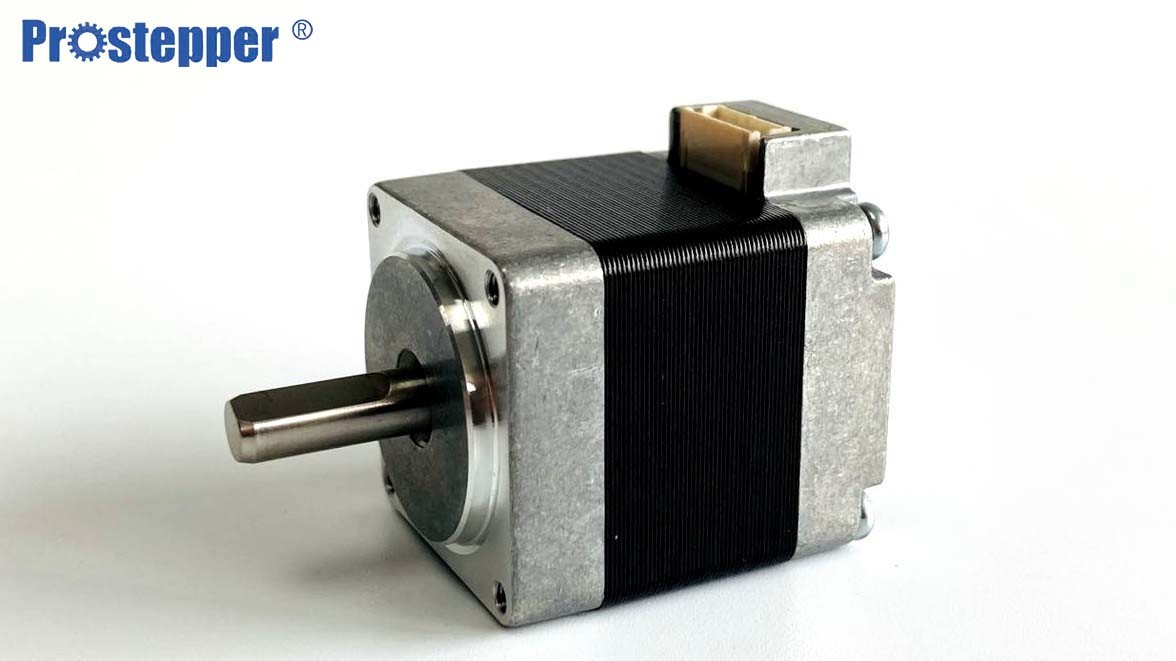

Medical System Nema 11 0.08N.M 28mm Motor Holding Torque

Basic Information
Place of Origin: JIANGSU,CHINA
Brand Name: Prostepper
Certification: CE/ISO/ROHS
Model Number: PST28H232-4P15S
Minimum Order Quantity: 10pcs
Price: USD10.2-13.9/pcs
Packaging Details: 39.5*24.5*18
Delivery Time: 7-25 work days
Payment Terms: D/A, D/P, T/T, Western Union, L/C
Supply Ability: 3000000pcs per year
Model Number: PST28H232-4P15S Place Of Origin: CHINA
Certification: CE, ISO, ROHS Current: 0.5A
Step Angle(degrees: 1.8 Inductance MH/Phase: 14mH
High Light:

28mm Motor Holding Torque

,

0.08N.M Motor Holding Torque

,

Nema 11 stepper holding torque

High Speed Stepper Motor 1.8 Degree Two Phase Hybrid NEMA8 Bipolar 0.08N.M 28mm













Medical System Nema 11 0.08N.M 28mm Motor Holding Torque 0Medical System Nema 11 0.08N.M 28mm Motor Holding Torque 1Medical System Nema 11 0.08N.M 28mm Motor Holding Torque 2









Specifications



Mode No PST28H232-4P05

PST28H232-4P10



PST28H245-4P10



PST28H245-4P15
Holding Torque 0.08 N.m 0.08 N.m 0.12 N.m 0.12 N.m
Related Current 0.5A/Phase 1A/Phase 1A/Phase 1.5A/Phase
Resistance 20 Ω /Phase 5.7 Ω /Phase 8.5 Ω /Phase 3Ω /Phase
Inductance 14MH/Phase 3.5MH/Phase 6.5MH/Phase 3MH/Phase
Inertia 9 g.cm2 9 g.cm2 12 g.cm2 12 g.cm2
Weight 0.1kgs 0.1kgs 0.15kgs 0.15kgs
Length 32mm 32mm 45mm 45mm

Connection



P P P P



Product description of 1.8 degree stepper motor



1. Accurate position Control

The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.

2. Accurate Speed Control

The rotational speed of the stepping motor can be precisely controlled ,By controlling the frequency of the electric pulse.

3. Forward/Reverse Rotation,Pause and Hold

The forward /reverse rotation of the stepping motor can be controlled by the input sequence of the controlled electric pulses.

In the case of the a stepping motor lock(the motor winding is energized,there is no external electric pulse command),the stepping motor can still maintain a certain torque output.



General Specifications Item Specifications


Speed/Torque Characteristics(Reference Value)

Medical System Nema 11 0.08N.M 28mm Motor Holding Torque 3





Outline(Unit:mm)

Medical System Nema 11 0.08N.M 28mm Motor Holding Torque 4Medical System Nema 11 0.08N.M 28mm Motor Holding Torque 5






Advantage of Product

Operation of Stepper Motor:

Stepper motors operate differently from DC brush motors, which rotate when voltage is applied to their terminals. Stepper motors, on the other hand, effectively have multiple toothed electromagnets arranged around a central gear-shaped piece of iron. The electromagnets are energized by an external control circuit, for example, a microcontroller.
