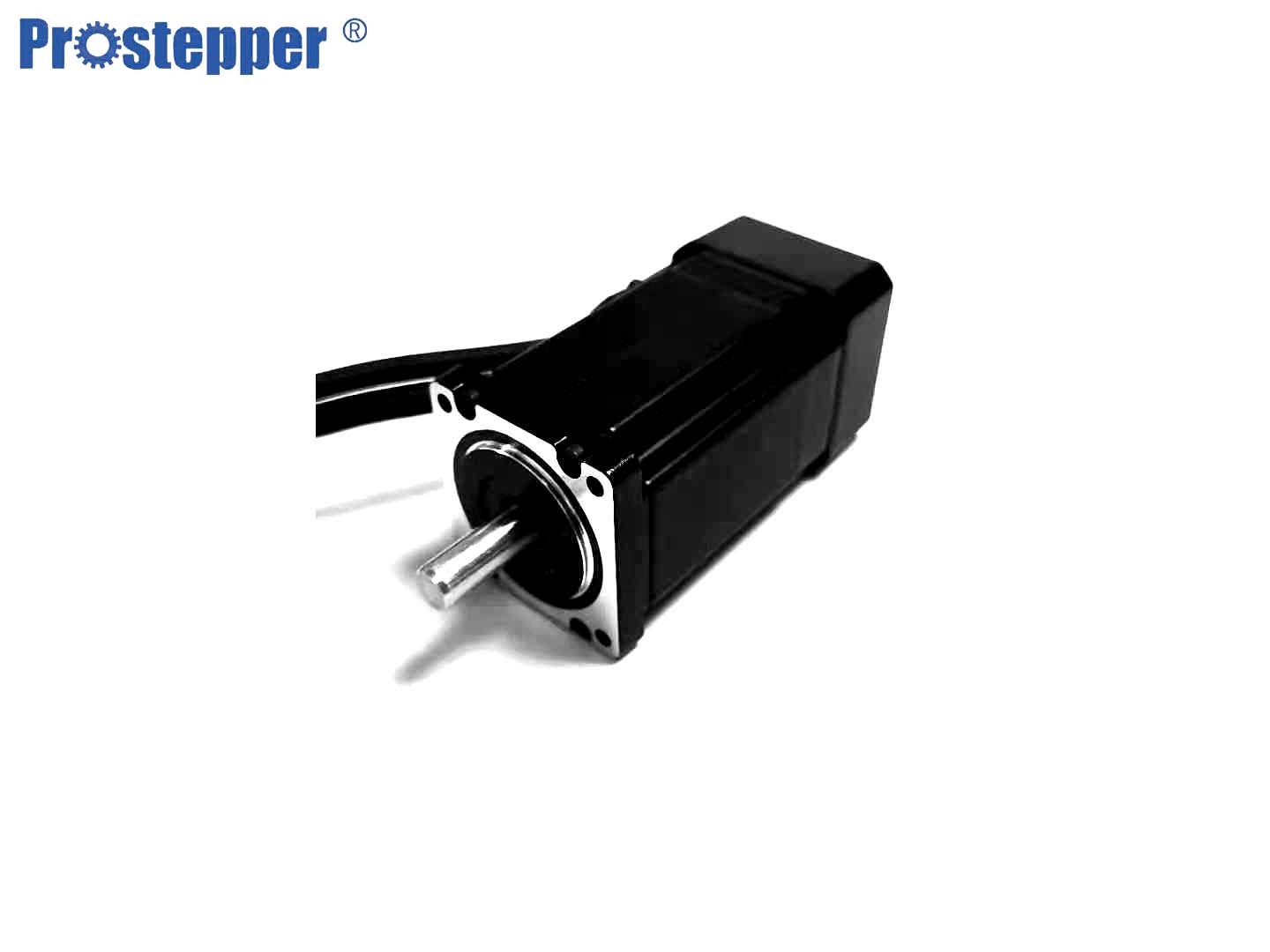

Nema 14 hybrid stepper motor

35mm 2 phase hybrid NEMA14 Encoder stepper motor 1.8 automatic stepper motor

Product description of nema14 stepper motor

• 1.  Accurate Speed Control
• The rotational speed of the stepping motor can be precisely controlled ,By controlling the frequency of the electric pulse.
• 2. The material is selected from well-known manufacturers at home and abroad. The advantages are light weight, good heat dissipation performance, good thermal conductivity, die-casting, good plasticity, higher elongation than iron, low noise, good motion stability, the disadvantages are high price, low hardness
• 3. Longer Life

  Stepping motor is a mechanical structure,which does not need be changed by electric brush or Hall sensor,thus reducing the probability and increasing the motor life.Stepping motor life usually determined by the life of the bearing.

• 4. Material quality: The coat is 304 stainless steel, the water jacket is the high compression casting aluminum tube, the red copper coil.

encoder stepper motor of Specifications

Working principle of stepper motor

To make the motor shaft turn, first one electromagnet is given power, which makes the gear’s teeth magnetically attracted to the electromagnet’s teeth. The point when the gear’s teeth are thus aligned to the first electromagnet, they are slightly offset from the next electromagnet. So when the next electromagnet is turned ON and the first is turned OFF, the gear rotates slightly to align with the next one and from there the process is repeated. Each of those slight rotations is called a step, with an integer number of steps making a full rotation. In that way, the motor can be turned by a precise. Stepper motor doesn’t rotate continuously, they rotate in steps. There are 4 coils with a 90o angle between each other fixed on the stator. The stepper motor connections are determined by the way the coils are interconnected. In a stepper motor, the coils are not connected. The motor has a 90o rotation step with the coils being energized in a cyclic order, determining the shaft rotation direction. The working of this motor is shown by operating the switch. The coils are activated in series in 1-sec intervals. The shaft rotates 90o each time the next coil is activated. Its low-speed torque will vary directly with current.

Applications of Stepper Motors

Stepper motors are diverse in their uses, but some of the most common include:

• 3D printing equipment
• Textile machines
• Printing presses
• Gaming machines
• Medical imaging machinery
• Small robotics
• CNC milling machines
• Welding equipment

Buyer's Concerns

Q1:  What about your warranty?

 A:  We guarantee is one year for sea order .

Q2: Do you have any certificates?

 A: Yes, we have. All the motors have been approved by CE and RoHS.

Q3: Do you offer OEM AND ODM service?

 A: Yes. We can supply OEM and make customized design for any specific application.
