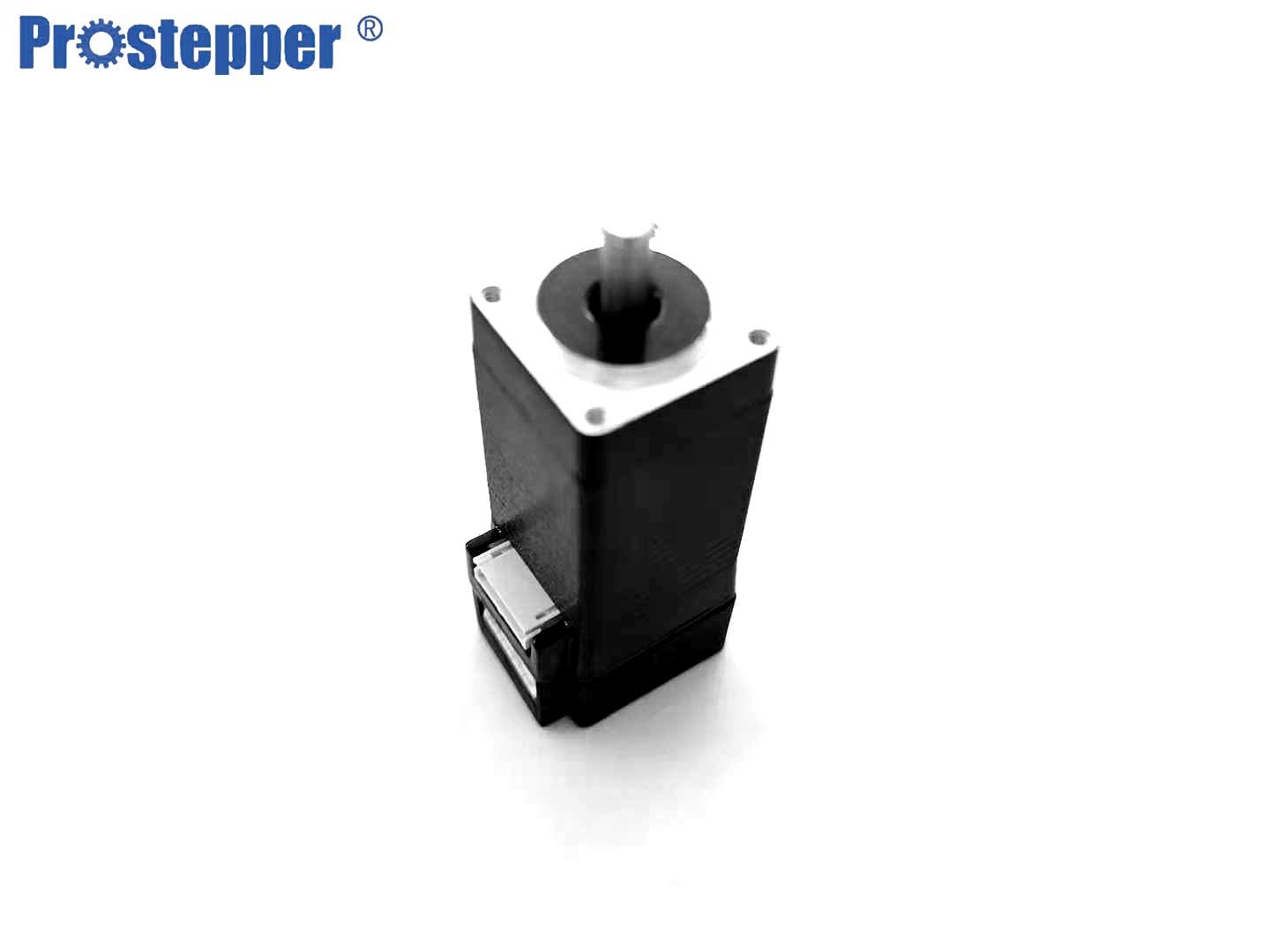

Nema 8 2 Phase 1.8 Degree Hybrid Stepper Motor

Product description of encoder stepper motor

1. Strictly control the production of parts to improve the quality of parts

   Stepping motor is a mechanical structure,which does not need be changed by electric brush or Hall sensor,thus reducing the probability and increasing the motor life.Stepping motor life usually determined by the life of the bearing.

2. Longer Life

   Stepping motor is a mechanical structure,which does not need be changed by electric brush or Hall sensor,thus reducing the probability and increasing the motor life.Stepping motor life usually determined by the life of the bearing.

3. Fulling product line is sold to major manufacturing Companies for Industry of automation, medical andhealth care equipment, printer machine, packing device,Information Technology,household appliance,product,AGV and automobile.

4. Online testing of technical parameters to ensure the consistency of data product parameters

5. Material quality: The coat is 304 stainless steel, the water jacket is the high compression casting aluminum tube, the red copper coil.

NEMA8 Encoder stepper motor 2 phase hybrid 1.8 degree stepper motor for home appliances

Encoder stepper motor of Specifications

• 1. Shaft Dia= 5mm
• 2. Step Angle: 1.8
• 3. Phase Current 1.2A
• 4. Phase Resistance: 1 .5Ohm
• 5. Phase Inductance: 2.8mH
• 6. Holding Torque: 40N.cm
• 7. Braking Torque: 2.2N.cm
• 8. Rotor Inertia: 54g.cm32;
• 9. Wire: 4(Blue, green, black, red)
• 10. Max. Temperature Rise: 80"C (rated current, 2 phase on)11. Operating Temperature: -20*C-+70"C
• 11. Insulation Resistance: 100 MQ Min., 500VDC
• 12. Radial Clearance: 0.02Max, (450g-Load)
• 13. Axial Clearance: 0.08Max. (450g-Load)

Quality assurance:

• 1. All stepper motors have CE and RoHS certification
• 2. All motors are tested by a toasting machine for 72 hours
• 3. All the motors will be shipped after testing

Encoder stepper motor Application

Stepper motors are diverse in their uses, but some of the most common include:

• 3D printing equipment
• Textile machines
• Printing presses
• Gaming machines
• Medical imaging machinery
• Small robotics
• CNC milling machines
• Welding equipment

Primary Competitive Advantages:

• Green Product
• Military Specifications
• Packaging
• Price
• Product Features
• Product Performance
• Prompt Delivery
• Quality Approvals
• Service
• Small Orders Accepted
• Brand-name Parts
• Origin
• Experienced Staff

Tips: Which types of stepper motor is divided into?

Stepper motor is divided into three types: permanent magnet stepper motor (PM), variable reluctance stepper motor (VR) and hybrid stepper motor (HB).

• PM stepper motor is generally 2-phase, with small torque and volume, its stepping angle is generally 7.5° or 15°.
• VR stepper motor is generally 3-phase; high torque output can be realized; the stepping angle is generally 1.5, but the noise and vibration is large. The rotor magnetic circuit of VR stepper motor is made of soft magnetic materials. There is multi-phase exciting winding on the rotor. The torque is generated by taking advantage of the change in magnetic conductance.
• HB stepper motor, indicating mixing the advantages of PM and VR, is divided into 2-phase, 3-phase and 5-phase. The stepping angle of 2-phase is generally 1.8°, that of 3-phase 1.2° and that of 5-phase is 0.72°. It is mostly widely applied.
