SGS Monitor Equipment 1.8 Degree Nema 14 Stepper Motor

Basic Information
Place of Origin: JIANGSU,CHUNA
Brand Name: Prostepper
Certification: CE.ISO.ROHS.SGS
Model Number: PEM60H269E1KM
Minimum Order Quantity: 10pcs
Price: USD9.5-14.2PCS
Packaging Details: 39.5*24.5*18
Delivery Time: 7-25 work days
Payment Terms: D/A, D/P, T/T, Western Union, L/C
Supply Ability: 3000000pcs per year
Brand Name: PROSTEPPER Name: 57mm Two Phase Brake Stepper Motor
Current/phase: 2 Step Angle: 1.8degree
Brake Torque: 1.3N.m Place Of Origin: JIANGSU,CHINA
High Light:

1.8 Degree Nema 14 Stepper Motor


SGS Nema 14 Stepper Motor


57mm holding torque stepper motor

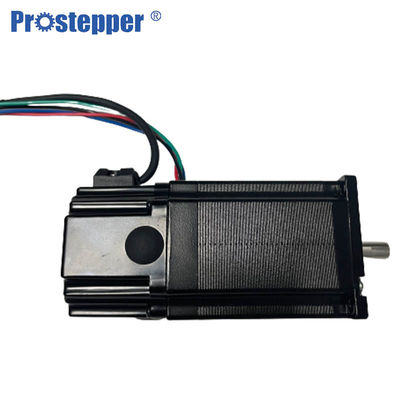

57mm NEMA14 2 phase brake type stepper motor for monitor equipment


Product description


1. Material quality: The coat is 304 stainless steel, the water jacket is the high compression casting aluminum tube, the red copper coil.

2. Mechanical size 100% meet the requirements, to ensure that there is no greater error in the use process

3. Automatic assembly line

Automatic assembly line, improve production efficiency, low cost without human operation, one line down intelligent mechanical automatic assembly

4.Strictly control the production of parts to improve the quality of parts

5.Automatic machine operation, stable automatic work, high processing efficiency.

6.Electromagnetic furnace optimization design, lift torque, reduce temperature rise, so that the motor running smoothly


Used for robots stepper motor,

electronic automatic equipment stepping motor,

medical instrument stepping motor,

advertising instrument stepper motor



Mode No:PEM60H269E1KM


Holding Torque 2.2N.m
Related Current 5A/Phase
Resistance 0.34Ω/Phase
Inductance 1.1MH/Phase
Inertia 490g.cm²
Index ×
Output Differental
Brake Torque 1.3N.m
Weight 1.5Kg


Speed/Torque Characteristics(Reference Value)

Heat dissipation considerations

The reliable operating environment temperature of the driver is usually within -5℃ ~45℃, the temperature of the driver is within 65℃ when the driver is working, and the temperature of the motor is within 70℃ when the driver is working. When necessary, a fan is installed near the driver to force heat dissipation, so as to ensure that the driver works within the reliable operating temperature range
