| Place of Origin: | JIANGSU,CHINA |
|---|---|
| Brand Name: | Prostepper |
| Certification: | CE.ISO.ROHS.SGS |
| Model Number: | PST42H249-4P20G |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | 38.5*24*23 |
| Delivery Time: | 7-25 work days |
| Payment Terms: | T/T, Western Union,, D/A, D/P |
| Supply Ability: | 250000pcs per/ month |
| Brand Name: | Prostepper | Motor Step Angle: | 1.8degree |
|---|---|---|---|
| Temperature Rise: | 80°Cmax | Motor Type: | Gear Box Type |
| Motor Lenght: | 49mm | Inductance: | 2.9m/H |
| Motor Weight: | 0.36kg | ||
| High Light: | 42mm Gear Stepper Motor,Nema17 Gear Stepper Motor,42mm hybrid stepper motor |
||

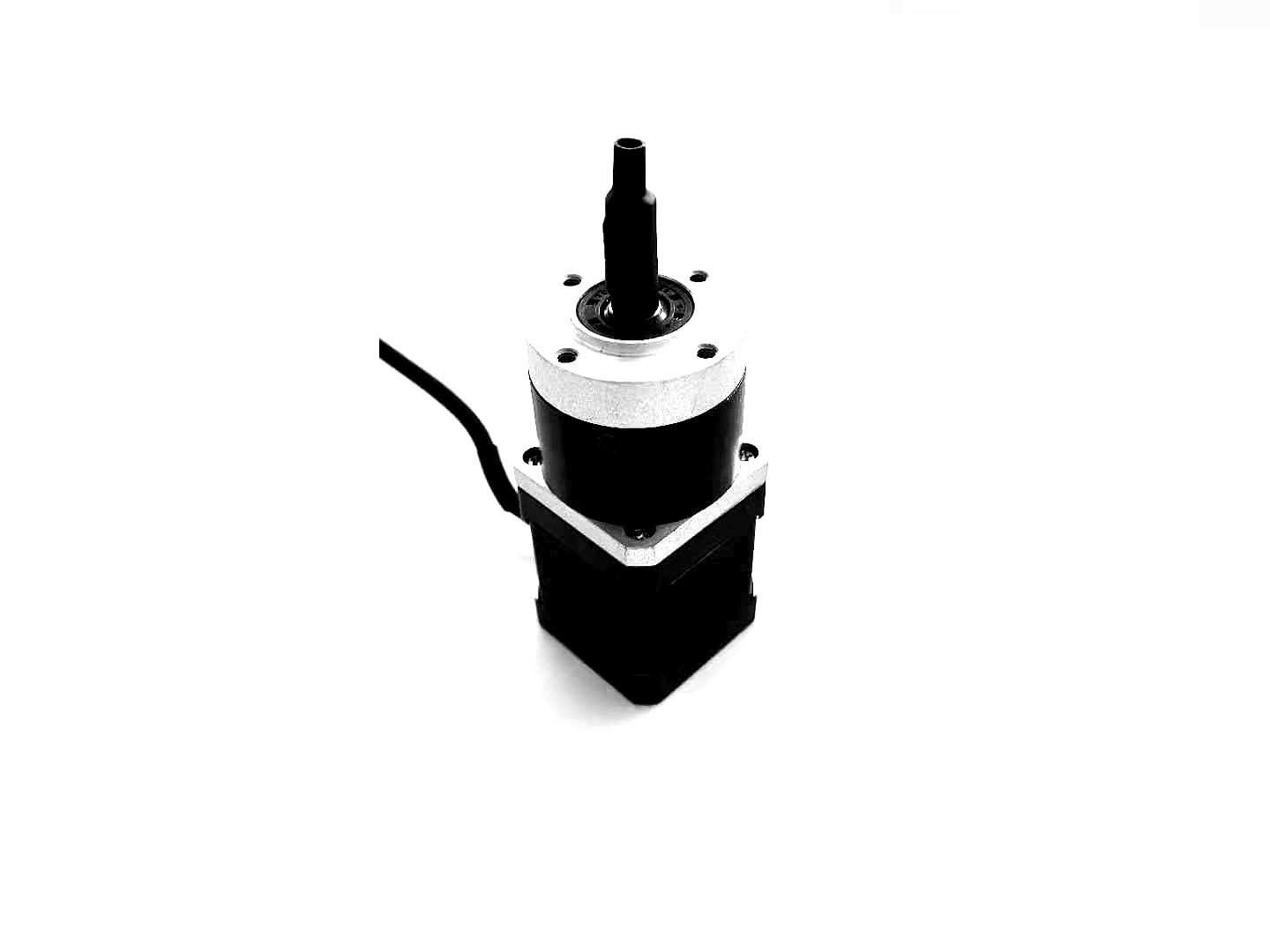

42mm 1.8 Degree Gear Box Type Stepping Motor Nema17 Hybrid Stepper Motor
Description of Gear Box Stepper Motor
1. High reliability, easy maintenance.Motor rotor structure accurate, no loss of step.Rotor special material, not stuck machine
2. Strictly control the production of parts to improve the quality of parts.
3. Accurate Speed Control
The rotational speed of the stepping motor can be precisely controlled ,By controlling the frequency of the electric pulse.
5. Accurate position Control
The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.
| Number of phase | 2 |
| Basic step Angle | 1.8 degree |
| Rated Current | 2.0A |
| Resistance | 0.8ohm |
| Inductance | 3.7mH |
| Holding Torque | 0.72N.m |
| Weight | 0.5kg |
Gear Box Stepper Motor's specifications
Not every application will benefit from a stepper motor, but in the right environment stepper motors can be ideal. First, stepper motors have full torque at standstill, and the rotation angle of the motor is proportional to the input pulse. Essentially, stepper motors offer excellent speed control, precise positioning, and repeatability of movement.
Additionally, stepper motors are highly reliable since there are no contact brushes in the motor. This minimizes mechanical failure and maximizes the operation lifespan of the motor. These motors can be used in a wide range of environments, as many different rotational speeds can be achieved because the speed is proportional to the frequency of pulse inputs.
1.8° Step Angle,The motors are directly compatible with the stepper motor drive boards and also drive either motor (if required) in the half step mode i.e. 0.9° per step resulting in higher resolution, greater performance stability and faster stepping rates. Direction, velocity, acceleration/deceleration can be controlled by a stepper motor controller.,Applying the correct electrical pulse sequence to the windings of the stepper motor results in a 1.8° step angle rotation of the spindle (i.e. 200 steps per revolution). When correctly loaded and driven these motors will produce discrete output steps. The number of steps and speed of rotation are determined by the number of pulses and frequency of the input signal. This provides an ideal method for speed and position control. The motors are directly compatible with stepper motor drive boards.,
Applications include:
Robotics
Paper feed mechanisms
Teletype printers
Small machine tools
Computer peripherals
X-Y plotters
