| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Prostepper |
| Certification: | CE/ISO/ROHS |
| Model Number: | 60BLM200 |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiable |
| Packaging Details: | 32*30*14cm |
| Delivery Time: | 7-25 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 250000pcs per month |
| Type: | Brushless Stepper Motor | Brand Name: | Prostepper |
|---|---|---|---|
| Temperature Rise: | 80°Cmax | Motor Length: | 84±1mm |
| Phase: | 3 | Voltage: | 36V |
| High Light: | 200w Brushless Motors,0.71N.m Brushless Motors,60mm 48 volt brushless dc motor |
||

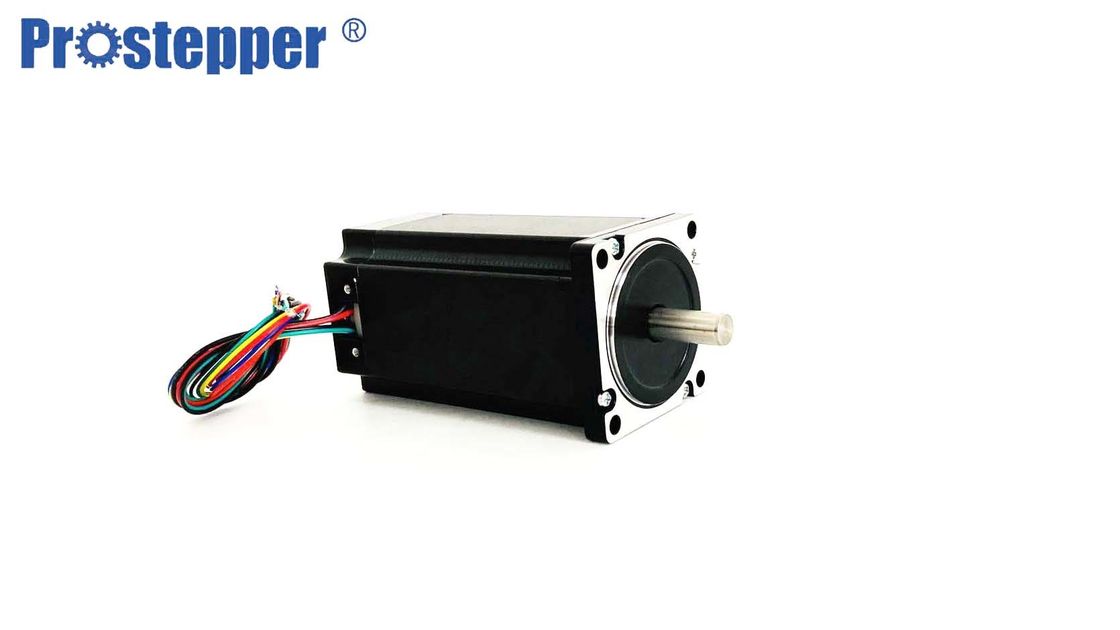

60 mm 3 phase Black and silver Brushless DC motor for Medical Equipment
Product description
A brushless DC electric motor (BLDC motor or BL motor), also known as electronically commutated motor (ECM or EC motor) and synchronous DC motors, are synchronous motors powered by direct current (DC) electricity via an inverter or switching power supply which produces electricity in the form of alternating current (AC) to drive each phase of the motor via a closed loop controller. The controller provides pulses of current to the motor windings that control the speed and torque of the motor. This control system replaces the commutator (brushes) used in many conventional electric motors.
Specifications of brushless motor
| Sensor | Hall sensor |
| Insulation Grade | Class 8 (130 degree) |
| IP Rate | IP40 |
| Operating Temperature | -10 degree to +50 degree(Non condensing) |
| Operating Humidity | 85% RH Max(Non condensing) |
| Operating Environment |
No corrosive gas or dust |
| Model | BL60FB36-40-001 |
| Length | 84±1mm |
| Voltage | 36VDC |
| Rated output Power | 140Watts |
| Rated Speed | 4000RPM |
| Maximum Speed | 5200RPM |
| Rated Torque | 0.33N.m |
| Rated winding Current | 5.0A |
| Voltage constant ±10% | 4.9 V/KRPM |
| Ph Resistance ±10%@20℃ | TBD Ohm |
| Ph Inductance ±30%@1kHz 20℃ | TBD mH |
| Moment of Inertia | 480g.m2 |
| Motor Mass | 1.2kgs |
| Phase | 3 |
| Pole | 8 |
Application:
Brushless motor for AGV
Brushless motor for Automotive equipement
Brushess motor for solar energy equipment
Brushless motor for Automatic door, gate machine
The quality control of brushless DC motor in the all process
Raw material inspection
Inspecting according to the standard of testing raw material or the drawing
Monitoring and measurement in production process
Self checking-tested by QC-Batches production
Final checking and make experiment
All products should be through testing by the professional equipment
Can you provide us the following information ?
There are serveral important items: size, length of Brushless motor, holding torque, voltage, current etc.After confirm some them and told us, we can send you the suitable one.
