|Place of Origin:||JIANGSU,CHINA|
|Minimum Order Quantity:||1pcs|
|Delivery Time:||7-25 work days|
|Payment Terms:||T/T, Western Union, L/C|
|Supply Ability:||250000pcs per /month|
|Step Angle:||1.8degree||Application:||Mask Machine|
|Dielectric Strength:||500V AC 1min||Encoder Resolution:||1-1024Magnetic Encoder|
2.2MH/Phase Encoder Stepper Motor,
0.02N.M Encoder Stepper Motor,
Two Phase Hybrid Stepper Motor

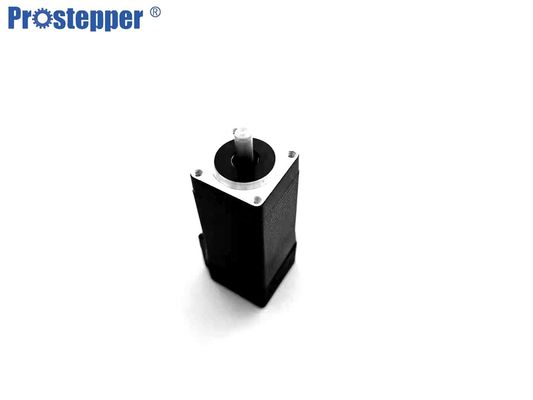

20mm 2 phase hybrid NEMA8 bipolar stepper motor1.8 step motor
Quality control process:
Working principle of stepper motor
To make the motor shaft turn, first one electromagnet is given power, which makes the gear’s teeth magnetically attracted to the electromagnet’s teeth. The point when the gear’s teeth are thus aligned to the first electromagnet, they are slightly offset from the next electromagnet. So when the next electromagnet is turned ON and the first is turned OFF, the gear rotates slightly to align with the next one and from there the process is repeated. Each of those slight rotations is called a step, with an integer number of steps making a full rotation. In that way, the motor can be turned by a precise. Stepper motor doesn’t rotate continuously, they rotate in steps. There are 4 coils with a 90o angle between each other fixed on the stator. The stepper motor connections are determined by the way the coils are interconnected. In a stepper motor, the coils are not connected. The motor has a 90o rotation step with the coils being energized in a cyclic order, determining the shaft rotation direction. The working of this motor is shown by operating the switch. The coils are activated in series in 1-sec intervals. The shaft rotates 90o each time the next coil is activated. Its low-speed torque will vary directly with current.
Q1: What about your warranty?
A: We guarantee is one year for sea order .
Q2: Do you have any certificates?
A: Yes, we have. All the motors have been approved by CE and RoHS.
Q3: Do you offer OEM AND ODM service?
A: Yes. We can supply OEM and make customized design for any specific application.
