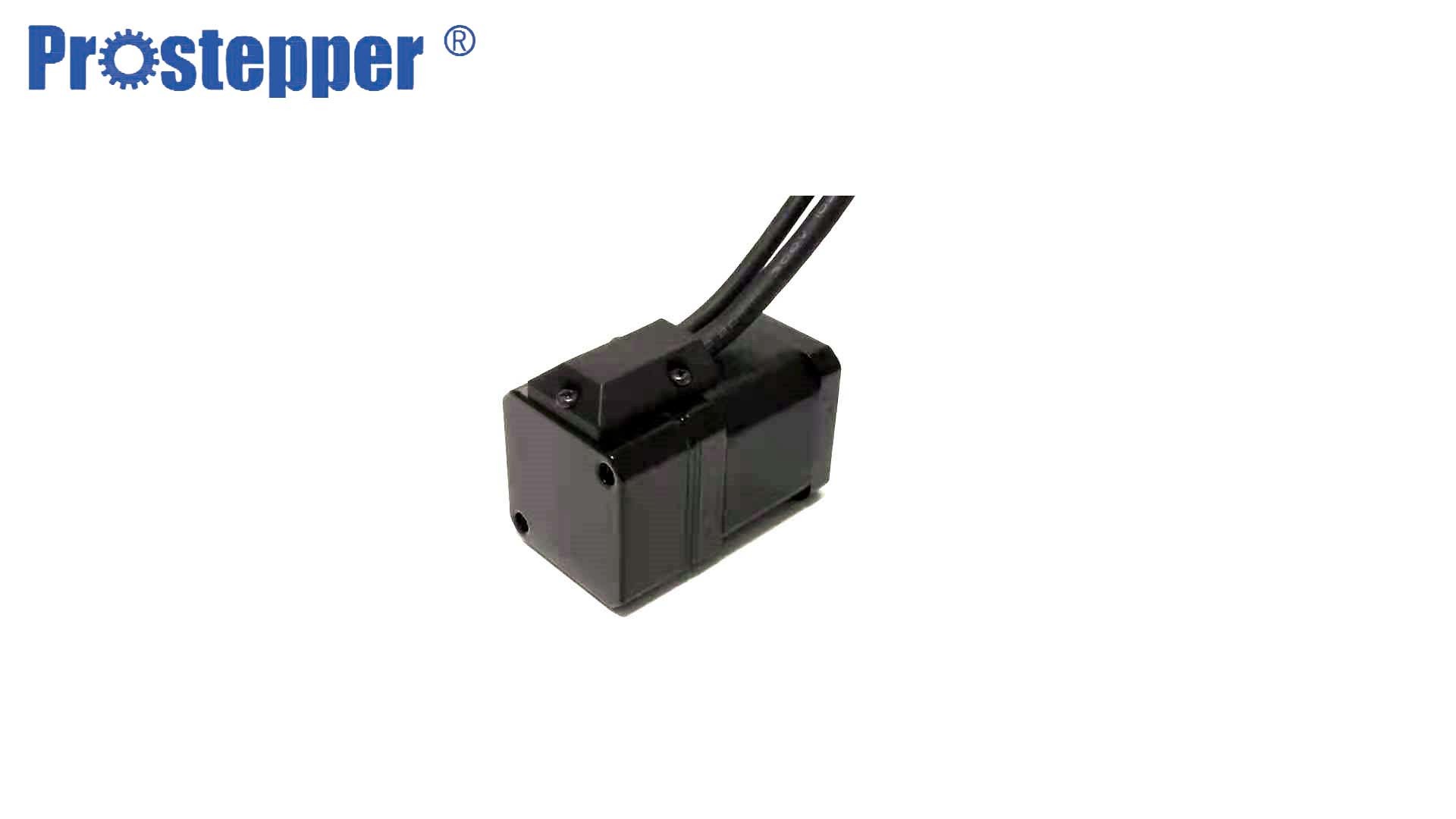

Nema 17 31mm 0.6A 0.16N.M Cable Stepper Motor

Basic Information
Place of Origin: JIANGSU,CHINA
Brand Name: Prostepper
Certification: CE.ISO.ROHS.SGS
Model Number: PST42H231-4P06
Minimum Order Quantity: 10pcs
Price: USD6.3-8.6/PCS
Packaging Details: 38.5*24*23
Delivery Time: 7-25 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 250000pcs per/ month
Maximum Static Moment: 0.16N.m Type: Nema 17 Cable Stepper Motor
Stepper Motor Current: 0.6A Temperature Rise: 80°Cmax
Weight: 0.2kg Motor Length: 31mm
Application: Mask Machine
High Light:

0.16N.M Cable Stepper Motor


31mm Cable Stepper Motor


31mm 2 phase hybrid stepper motor

Nema 17 Cable Stepper Motor 1.8 Degree Two Phase Hybrid Stepper Motor


 What is stepper motor?

Nema 17 31mm 0.6A 0.16N.M Cable Stepper Motor 0




Mode No PST35H236-4P10





Holding Torque 0.18N.m 0.18N.m 0.16N.m
Related Current 1A/Phase 1.5A/Phase 0.6A/Phase
Resistance 4.6Ω /Phase 2.1Ω /Phase 6.6Ω /Phase
Inductance 5MH/Phase 2.1MH/Phase 9.5MH/Phase
Inertia 20g.cm2 20g.cm2 23g.cm2
Weight 0.21kgs 0.21kgs 0.2kgs
Length 36.5mm 36.5mm 31mm
Connection P P P


Nema 17 31mm 0.6A 0.16N.M Cable Stepper Motor 1Nema 17 31mm 0.6A 0.16N.M Cable Stepper Motor 2





Quality control process:

Product description of hybrid stepper motor


  1. The forward /reverse rotation of the stepping motor can be controlled by the input sequence of the controlled electric pulses.
  2. In the case of the a stepping motor lock(the motor winding is energized,there is no external electric pulse command),the stepping motor can still maintain a certain torque output.
  3. Online testing of technical parameters to ensure the consistency of data product parameters
  4. The material is selected from well-known manufacturers at home and abroad. The advantages are light weight, good heat dissipation performance, good thermal conductivity, die-casting, good plasticity, higher elongation than iron, low noise, good motion stability, the disadvantages are high price, low hardness
  5. Stepper motors are economical, accurate, and easy to control, and they can operate reliably in a variety of environments (depending on the level of protection IP chosen) preferably in machines with additional enclosures or in clean environments
  6. Mechanical size 100% meet the requirements, to ensure that there is no greater error in the use process

Operation of Stepper Motor:

Stepper motors operate differently from DC brush motors, which rotate when voltage is applied to their terminals. Stepper motors, on the other hand, effectively have multiple toothed electromagnets arranged around a central gear-shaped piece of iron. The electromagnets are energized by an external control circuit, for example, a microcontroller.
