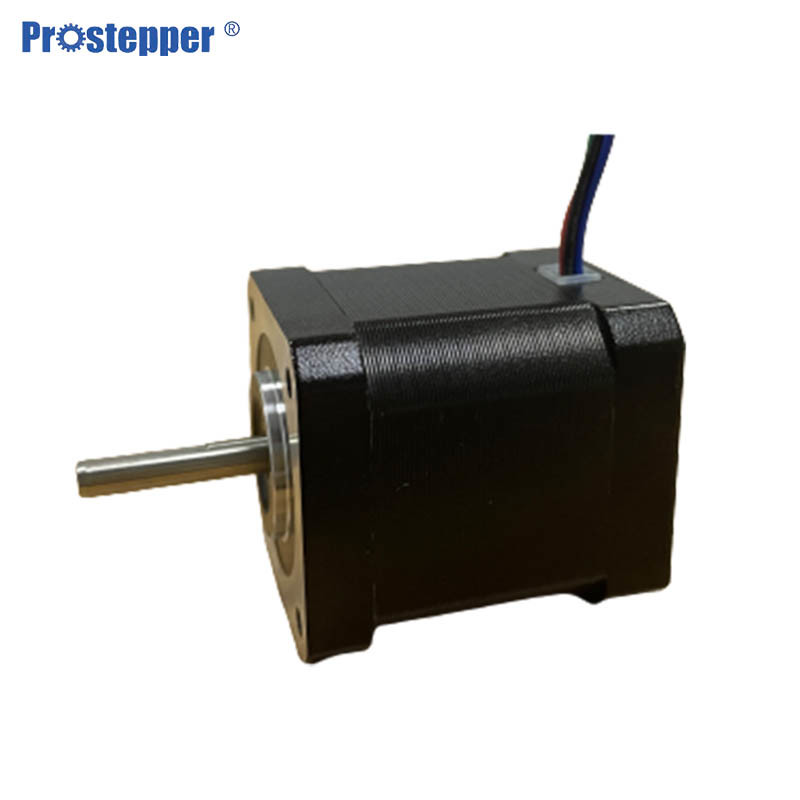

42mm Two Phase Nema 17 Encoder Stepper Motor

42mm 2 phase hybrid NEMA11 bipolar stepper motor1.8 step motor

Product description

• 1. Accurate Speed Control
• The rotational speed of the stepping motor can be precisely controlled ,By controlling the frequency of the electric pulse.
• 2. Forward/Reverse Rotation,Pause and Hold
• The forward /reverse rotation of the stepping motor can be controlled by the input sequence of the controlled electric pulses.
• In the case of the a stepping motor lock(the motor winding is energized,there is no external electric pulse command),the stepping motor can still maintain a certain torque output.
• 4. Electromagnetic furnace optimization design, lift torque, reduce temperature rise, so that the motor running smoothly
• 5. Material quality: The coat is 304 stainless steel, the water jacket is the high compression casting aluminum tube, the red copper coil.
• 6.The material is selected from well-known manufacturers at home and abroad. The advantages are light weight, good heat dissipation performance, good thermal conductivity, die-casting, good plasticity, higher elongation than iron, low noise, good motion stability, the disadvantages are high price, low hardness

Specifications

Quality control process:

•  Incoming inspection: The inspection shall be conducted according to the Requirements of the Incoming Inspection Specification or the product drawing
•  Monitoring and measurement of production process (self-inspection - inspection - batch production)
•  Final inspection and test
•  All inspectors must be trained and then put on duty
• Nonconforming products shall be executed in accordance with Nonconforming Product Control Procedures
• Raw material inspection
• Inspecting according to the standard of testing raw material or the drawing
• Monitoring and measurement in production process
• Self checking-tested by QC-Batches production
• Final checking and make experiment
• All products should be through testing by the professional equipment
• Stepping Accuracy: ± 5%
• Resistance Accuracy: ± 10%
• Inductance Accuracy: ± 20%
• Temperature Rise: 80°C Max.
• Ambient Temperature: -20°C ... +50°C
• Insulation Resistance: 100MOhm min. 500V DC
• Withstand: 500V AC, 1 Minute

  ---

Working principle of stepper motor

To make the motor shaft turn, first one electromagnet is given power, which makes the gear’s teeth magnetically attracted to the electromagnet’s teeth. The point when the gear’s teeth are thus aligned to the first electromagnet, they are slightly offset from the next electromagnet. So when the next electromagnet is turned ON and the first is turned OFF, the gear rotates slightly to align with the next one and from there the process is repeated. Each of those slight rotations is called a step, with an integer number of steps making a full rotation. In that way, the motor can be turned by a precise. Stepper motor doesn’t rotate continuously, they rotate in steps. There are 4 coils with a 90o angle between each other fixed on the stator. The stepper motor connections are determined by the way the coils are interconnected. In a stepper motor, the coils are not connected. The motor has a 90o rotation step with the coils being energized in a cyclic order, determining the shaft rotation direction. The working of this motor is shown by operating the switch. The coils are activated in series in 1-sec intervals. The shaft rotates 90o each time the next coil is activated. Its low-speed torque will vary directly with current.

Buyer's Concerns

Q1:  What about your warranty?

 A:  We guarantee is one year for sea order .

Q2: Do you have any certificates?

 A: Yes, we have. All the motors have been approved by CE and RoHS.

Q3: Do you offer OEM AND ODM service?

 A: Yes. We can supply OEM and make customized design for any specific application.
